Shanklin hy-speed automatic wrapper

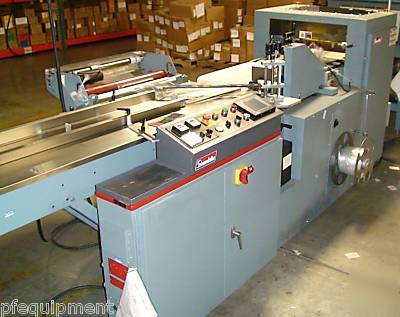

Shanklin Hy-Speed Automatic Wrapper
(Windows media player required)
We are pleased to offer this nice,
With: 8 Foot Lug Infeed Conveyor
The Shanklin Hy-Speed Automatic Wrapper was manufactured in 2002. It has been very well maintained and never ran over 20 packages per minute, and it ran an average of, no more than, 8 hours a day, 5 days a week.

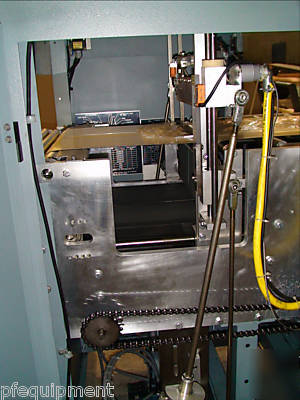

This Shanklin FloWrap Form-Fill-Seal Wrapper was completly cleaned, checked out and reconditioned by our technicians.
Additional 4 foot lugged infeed sections available upon requests.
Please call and ask for Mike or Steve Miller for any questions concerning this machine.
Our phone number is: 1-(***)-990-2440.
* Excellent value - The fastest, most versatile high-speed wrapper for the price
* Smooth operation - Features fully automatic continuous flow operation

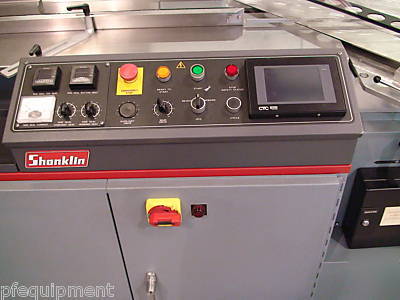

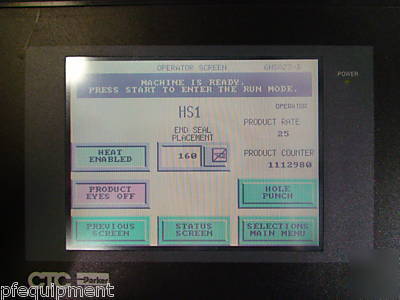

* Easy to use - Simple to set up and maintain; designed for quick, easy size changeovers; features user-friendly color touch screen controls
* Built to last - Ruggedly built for high performance, reliability and ease of maintenance
* Innovative - Features new SmartWire system that extends wire life and increases operational efficiency
* Min.: 1/2" W x 1/8" H x 3" L
* Max.: 16" W x 6" H x 60" L
Width + height combination cannot exceed max. film width

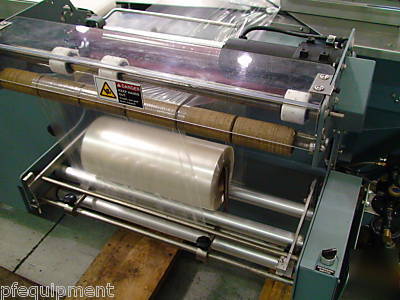

* Maximum film width: 22" folded or 44" flat; centerfolder required for flat film
* Conveyor height: 35 1/2" without casters; 41 1/2" with casters
* Package speeds: 100 packages/min. maximum; dependent on product and application
* Film speeds: 120 linear ft./min. maximum

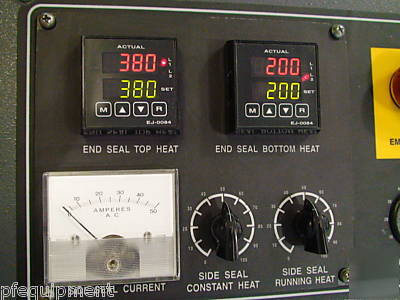

* Longitudinal seal: Weld bead at side of packages
* Transverse seal: Hot knife
* Main drive: 1 hp DC motor with SCR variable speed control
* Power: 230V, 15A, 60Hz, 1 phase

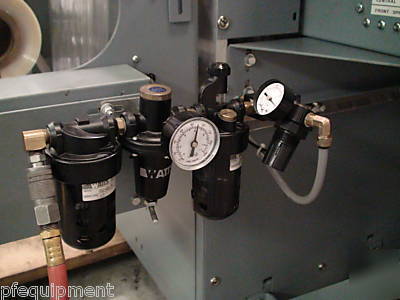

* Compressed Air: 1/2 C.F.M. free air at 60 psi

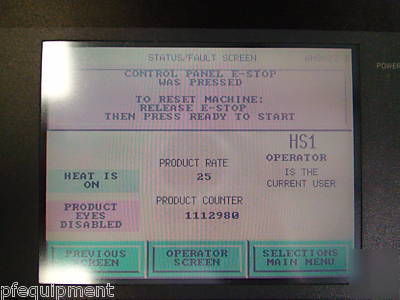

* Emergency stop button instantly stops all machine functions until manually reset
* Multiple safety interlocks
* Air cylinder safety opens end seal jaws
* Torque limiters on main drive and infeed conveyor
* Low voltage sensors and actuators
* Tamper-resistant controls
