RS232 to RS485 communication data adapter converter

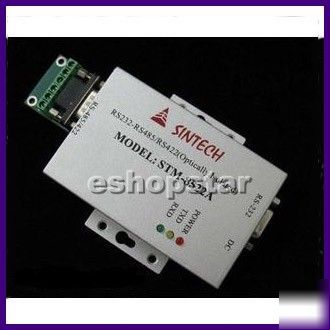

Brand New RS232 to RS485 RS422 Communication Data Adapter
This adapter is able to convert RS-232 signal to RS-485 balanced differential signal and extend the communication distance to 1.2km. It is passive and doesn't require external power.
1. Compatibility: EIA/TIA RS232C standard and RS485 ,RS422 standard.
2. Electronic Interface: At the side of RS-232 is a DB9 female (hole-type) connector. At the side of RS-485 is a DB9 male (needle-type) connector, with connection board
3. Support Passive mode (Without Power) and Action mode (Power Mode)
4. Working mode: asynchronous, half-duplex or full-duplex, differential transmission.
5. Transmission media: Common wire, doule wire, UTP or shielded twisted pair
6. Transmission rate: 300 - 115.2kbps;
7. Transmission distance:1.2 mile(RS-485),5 meters(RS-232)
8. Environment for application: temperature from 0? to 50?,relative humidity from 5%25 to 95%25.
1 x RS232 to RS485 RS422 Data Communication Converter
