Nsk nakanishi high power air motor spindle amxf-8001BH

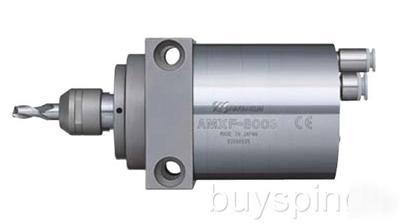

Nsk Nakanishi High Power Air Motor Spindle AMXF-8001BH
ULTRA PRECISION HIGH POWER AIR MOTOR SPINDLE AMXF-8001BH 3.15" (80mm) 720 min-1(rpm)
AMX-80 series has 3 speeds available 6,800 min-1(rpm)(80 cN m), 1/1 ratio, 2,100 min-1(rpm)(270 cN m), 1/3 ratio, and 720 min-1(rpm)(820 cN m), 1/9 ratio.
This short body, high torque motor/spindle uses a 190W air motor. The system is perfect for mounting on turret lathes, CNC gang tool lathes, special purpose machines and any other place you need high power and high torque in a small body.
Intake Air Hose (K-223) : 8 mm x 6 ft
Exhaust Air Hose (K-224) : 10 mm x 3.94"
Collet Nut (CHN-E) : Provided
AMXF-8001BH Air Motor Spindle Specifications
Intake Air Hose 6.0 mm . 8.0 mm (O.D.)
AMX-80 Series (1/9 Ratio) 720 min-1(rpm)
End Mill Capacity 0.236" (*1)
