Nice 26" x 144" leblond regal servo-shift engine lathe

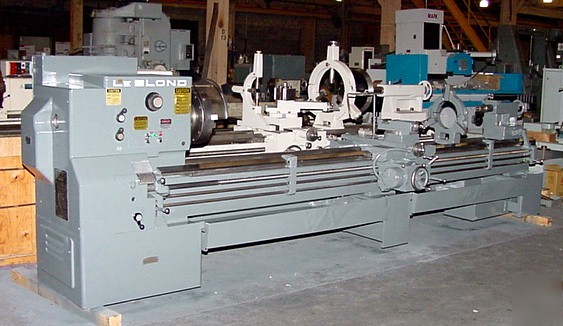

NICE 26" x 144" LeBLOND REGAL SERVO-SHIFT ENGINE LATHE
24" x 144" LEBLOND SERVO-SHIFT ENGINE LATHE
MODEL: 24" REGAL, S/N: 5H-836, NEW: 1976
SWING OVER BED .................... 26"
SWING OVER CROSS SLIDE ............ 18-1/4"
DISTANCE BETWEEN CENTERS .......... 144"
WIDTH OF BED ...................... 17"
HOLE THRU SPINDLE ................. 2-3/16"
SPINDLE SPEED RANGE (12) .......... 27 - 1080 RPM
LONGITUDINAL FEED RANGE (48) ...... .0036" - .205" IPR
TAILSTOCK SPINDLE TAPER ........... #5 MT
APPROX WEIGHT ..................... 8,500 LBS
APPROX DIMENSIONS ................. 192"L x 50"W x 55"H
- 10-1/2" CAPACITY PLAIN TYPE STEADY REST
- JACOBS DRILL CHUCK FOR TAILSTOCK
- LIVE & DEAD CENTER FOR TAILSTOCK
- 15 HORSE POWER MAIN MOTOR WITH CONTROLS
