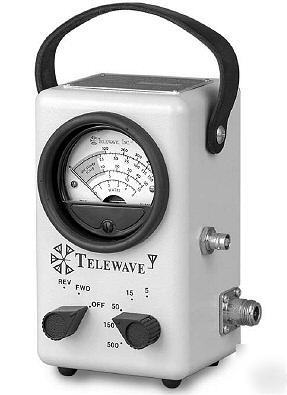

New telewave 44L1 broadband 2-200 mhz rf wattmeter ( )
* Requires no inserts of "slugs"
* Frequency range 2 - 200 MHz
* Measures 1 to 500 Watts RMS
* -40 dB RF sampling port (optional Model 44L1P)
* Quick change connectors type UHF, BNC or N
The Telewave Model 44L1 RF Wattmeter is a compact, versatile instrument used for direct measurement of forward and reflected RF power. Thanks to it's wide band capability and dynamic range, no elements, inserts or band-switching are required. The 20 uA taut-band meter movement is shock mounted in a rugged, diecast housing, making this instrument ideal for mobile radio installation in aircraft or vehicles, as well as base stations.
Model 44L1P provides an optional RF Sampling probe designed to accurately extract a low level of RF power as it passes through the instrument. This input/output port is accessed via a BNC connector located on the side of the meter.
