National display systems radiance 19" medical display

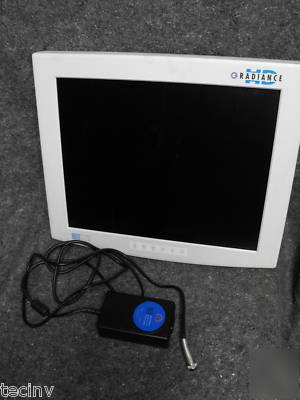

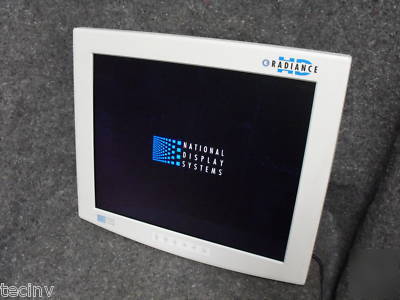

National Display Systems Radiance HD 19" Medical Display
High-definition Medical-grade LCD Monitor
Viewable Diagonal (inches) 19.0
Brightness (cd/m , typical) 3402
Contrast Ratio (nominal) 650:1
VGA Input signal level at 75 Ohm 0.7 V p-p
HD-SDI / SDI Input signal level .8 to 2.0 V p-p
S-Video Input signal level 0.7 V p-p
Composite Input signal level 1 V p-p
RGBS Input signal level 0.7 V p-p
Power Consumption (nominal) 60w
Display Weight 13.8 lbs (6.3 kg)
Operating Temperature 0 to 400C
Storage Temperature -20 to 600C
Relative Humidity (non condensing) 5-90%

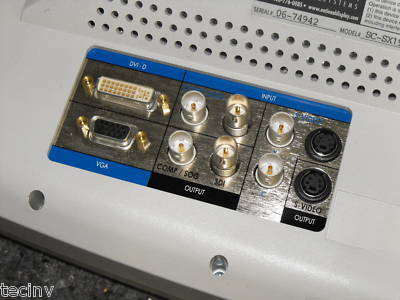

HD-SDI / SDI BNC, 75 Ohm terminated
S-video BNC x 2 (Y & C), 75 Ohm terminated

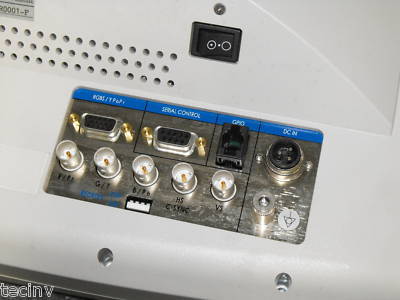

RGBS / YPbPr BNC x 5, 75 Ohm terminated
Composite BNC, 75 Ohm terminated
Sync-On-Green (SOG) BNC, 75 Ohm terminated
576/50i (PAL) SDI Comp, S-video, RGBS, YPbPr 15.625 Interlaced 16:9 / 4:3 SMPTE 259M/C ITU 601
480/60i (NTSC) SDI Comp, S-video, RGBS, YPbPr 15.734 Interlaced 16:9 / 4:3 SMPTE 259M/C ITU 601
576/50p RGBS, YPbPr, SOG 31.250 Progressive 16:9 / 4:3 -
480/60p RGBS, YPbPr, SOG 31.469 Progressive 16:9 / 4:3 -SMPTE 293M
720/50p RGBS, YPbPr , HD-SDI 37.500 Progressive 16:9 -SMPTE 296M
720/60p RGBS, YPbPr , HD-SDI 45.000 Progressive 16:9 -SMPTE 296M
1080/60i RGBS, YPbPr , HD-SDI 33.750 Interlaced 16:9 -SMPTE 274M
Up to 1024/60p SOG 64.0, max Progressive
