49.21" schiess cnc vertical turning center

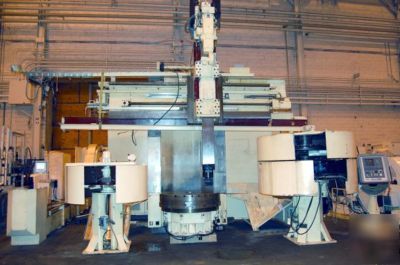

49.21" Schiess CNC Vertical Turning Center
Model: 16 DSC W/ Live Milling & Drilling
Live Milling & Drilling W/ C-Axis Table

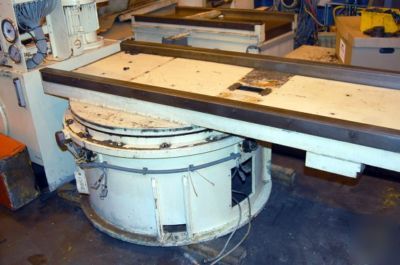

(2) 49.21" Pallets w/ Shuttle System
Swivel Type Right Angle Milling/Boring Head
Table Diameter ........................ 49.21"
Maximum Swing ......................... 62.99"
Maximum Turning Height ................ 51.18"
Vertical Travel Of Ram ................ 47.24"
Table Speeds: Inf. Variable ........... 4-400 RPM
Live Milling Speeds: Inf. Var. ........ 16-1600 RPM
Live Spindle Motor .................... 36 HP
12-Station Automatic Tool Changer

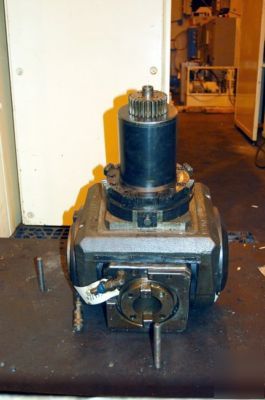

Right Angle Head: Horizontal/Vertical Model: B1-VB1

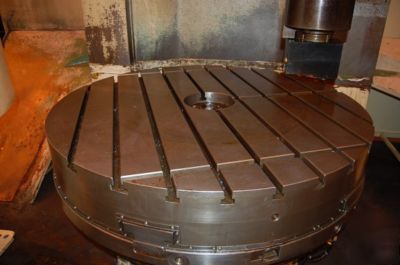

(2) 49.21" Diameter T-Slotted Pallets
Additional Detailed Specifications on Request
Machine Was Working Aircraft Engine Castings
