4 6-ganged multi pole pushbutton switches

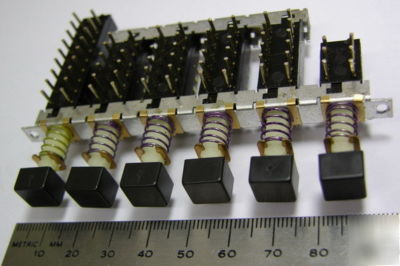

Six Multi Pole Pushbutton Switches
They are mounted on a common sheet metal bar but NOT ganged as a classic set of radio buttons. There are one DPDT, four 4PDT, and one 6PDT switches on each bar. They are all push on, push off switches. Six key caps are included for each bar, these apparently were to be glued on when assembled since they don't snap on.
Over all length is 98 mm (3.85") with 92 mm (3.625") between centers on the mounting holes. The button caps are 9.51 mm (.375") square x 6.46 mm (.254") tall.
