20G? resistance meter voltage insulation tester AR907

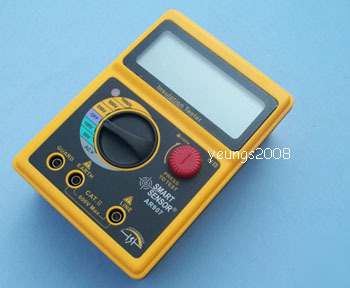

New 0~20G ohm Resistance Meter Voltage Insulation Tester AR907
* Item condition: New, never used.
* Live wire warning and audio indication.
* Auto power off function (10 minutes) .
* Voltage Measurement Range: 30V~600V (50/60HZ).
* Resistance Testing Range: 0.0 ~ 19.9 Gohm.
* LCD Display: Max 999 counts.
* Over range indication: OL: appears on insulation resistance; Lo: appears on voltage.
* Auto Range: Range shift to upper range: 1000 counts, Range shift to lower range: 95 counts(only on insulation).
* Sampling rate: 0.5-10 times/second.
* Operation altitude: <=2000m (indoor use).
* Operation Circumstance: temperature: 0-40C / humidity: <=85%
* Overload Potection: Insulation re: AC 1200V/10 second, Voltage: AC 720/10 second.
* Withstand Voltage: >=1000M ohm/DC 1000V.
* Power Supply: DC 9V (6x1.5V AA Batteries) (not included).
* Battery Consumption: approx. 500mA(Max).
* Battery lift: approx. 15hours.
* Very good Insulation Tester for electronic engineer !
50V / 100V / 250V / 500V / 1000V
* 20G Resistance Meter Voltage Insulation Tester AR907 x 1.
* Other Accessories: cable, tools, and clip connectors (as picture shows).
