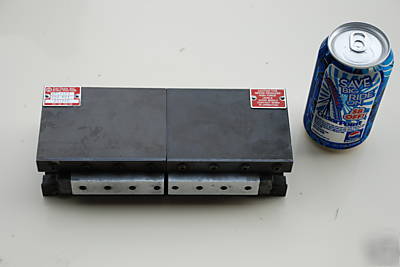

New zaytran inc. pneumatic parallel gripper. . 3" stroke
New Zaytran Pneumatic parallel gripper. Has a little shelf wear. Part number GPL-100
More info at http:// /Catalogs_PDF/New-GPL-Series-Rev7.pdf
Stroke limit options available
Gripping Force Per Jaw (Close) @ 100PSI (6.8bar): 196 lbs. (89 kgf)
Gripping Force Per Jaw (Open) @ 100PSI (6.8bar): 230 lbs. (104 kgf)
Approximate Weight: 5.3 lbs. (2404 g)
Operating Displacement: 7.216 cu. in. (118.24 cu. cm)
Maximum Operating Pressure: 120 PSI (8.3 bar)
Recommended Purge Pressure: 1/2 of operating pressure
