Cst/berger 5" reflectorless total station

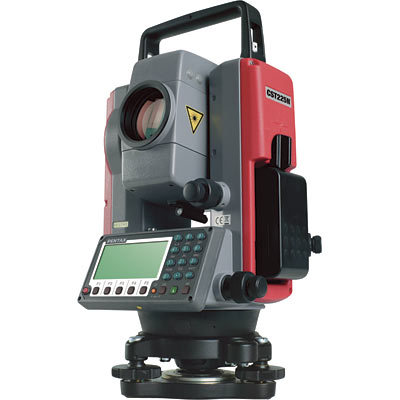

CST/berger 5" Reflectorless Total Station
Bring a quality solution to any site with this easy-to-use 5in. Reflectorless Total Station from CST/berger. The 4500ft.-plus range to a single prism makes this instrument perfect for any construction site or other applications like mapping and GIS, utilities, environmental studies and geomarking. 5 second angular accuracy ensures users the right precision under the right job conditions. Reflectorless distance measuring up to 295ft. makes getting that hard-to-reach distance measurement a breeze. Easy-to-use onboard software ensures that users have the right application at the touch of a finger. The CST225N features single axis (vertical) compensation that will make up for tilts on the X-axis. Manufactured for CST/berger by Pentax . Application: Construction, Display Type: LCD, alphanumeric, 8 lines of 20 characters, Field of View: 1 degree at 30 feet, Accuracy: 5 second angular, Range (ft.): 4,500, Measures up to (ft.): 295, Battery Included: Yes, Battery Type: NI-MH Magnification: 30X Compensator type: Single axis Display: Graphic LCD, alphanumeric, 8 lines of 20 characters EDM accuracy (prism/sheet): (3mm+2ppm x d)mm EDM accuracy (reflectorless): (5mm+2ppm x d)mm Measuring range (reflectorless): 295ft. (90m) Measuring range (mini prism): 3609 ft. (1100m) Measuring range (single prism): 6233ft. (1900m) Measuring range (triple prism): 7874ft. (2400m) On-board data collection (memory): 6000 points (measured and input coordinate data) On-board PowerTopoLight for CST Software applications: Coordinate measurement, Point, angle and distance stake out, Offsets, Missing line, Remote elevation and many more
