Asp johnson sterrad 50 mobile low temp sterilizer 131ºf

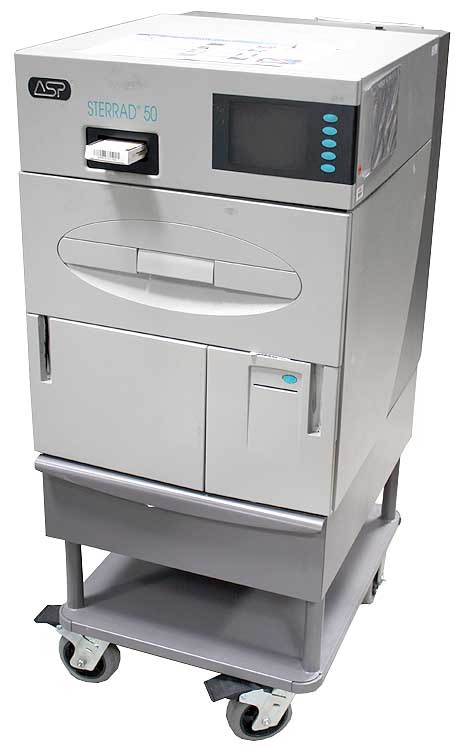

ASP Johnson Sterrad 50 Mobile Low Temp Sterilizer 131 F
APS Johnson Sterrad 50 Mobile Low Temp Sterilizer 131 F
Goes through start up then displays a message saying Vaporizer Fail contact
Dimension (LxWxH")- 25 x 32 x 58 Chamber- 24 x 16 x 7
The STERRAD 50 System prevents sterilization from taking a big bite out of your budget. Based on the patented application of hydrogen peroxide gas plasma technology, the system is both fast and effective for heat-stable, heat-sensitive, and moisture-sensitive instruments and medical devices. What s more, the gentle process offers unsurpassed material compatibility and uncompromising safety. The STERRAD 50 System cuts sterilization costs 6 ways:
1. Increased speed and capacity
* Rapid 45-minute cycle time.
* 1.55 cubic foot rectangular chamber holds multiple trays.
* Dry, low-temperature process means instruments are available for immediate use or storage.
* Reduces expensive instrument inventories.
2. Reduced instrument damage and repairs
* Gentler than steam and peracetic acid processes.
* No corrosion due to humidity.
* No water source, heat booster, or ventilation required.
* Runs on standard 110-VAC to 120-VAC, 60-Hz electrical.
4. Simple to learn and operate
* Intuitive touch-pad controls.
* Easy-to-follow prompts and instructions.
* Immediate diagnosis and warning of problems.
5. Safe for patients and the environment
* By-products are oxygen and water vapor.
* No odors or hazardous emissions.
* Achieves 10-6 SAL (Sterility Assurance Level) of packaged and unpackaged instruments.
Cycle temperature: 40 C to 55 C (104 F to 131 F)
Rectangular configuration 44 L (1.55 ft3) usable volume
Shelf dimensions 620 mm x 400 mm (24 in x 16 in)
Installation and Operating Requirements*
120 VAC +/- 10% 20 Amps, dedicated NEMA L5-20 three wire grounding receptacle to supply 12 Amps continuous and 40 Amps momentary current.
Placement: Cart-mounted for mobility
Temperature 15 C to 40 C (58 F to 104 F)
Humidity 10% to 80% relative humidity (noncondensing)
Minimum area 80 cm x 89 cm (31.5 in x 35 in); flat surface
Minimum distance from wall 80 mm (3 in)
Minimum service access 1 M (3 ft) on all sides (unit can be moved for service)
