25" cleereman single-spindle drill #23542

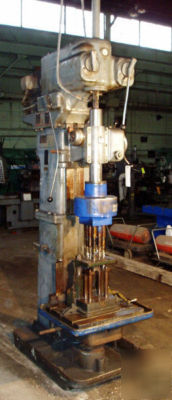

25" CLEEREMAN SINGLE-SPINDLE DRILL
New 1976, Serial No 60701, Model 25DC
U.S. Drill Head Multi-Head Drill Attachment
Spindle-Head Adjustment, Vertical...... 18"
Spindle Travel, Manual................. 12.5"
Spindle Travel, Power.................. 12"
Spindle-Center to Lower Column......... 12.5"
Spindle-Center to Upper Column......... 11.5"
Swing to Plane of Table................ 25"
Table Adjustment, Vertical............. 12"
Table Working Surface, W x L........... 19" x 24"
Base Working Surface, W x L............ 21" x 23.5"
(12) Spindle Speeds, Range............. 75 to 1500 RPM
(9) Spindle Feeds, Range............... .005 to .045 IPR
Spindle Motor, Horsepower/RPM.......... 7.5 HP/1740 RPM
Electrical Requirements................ 230/460/3/60
Overall Dimensions, W x D.............. 2'5" x 4'10"
Weight, Approximately.................. 3600 LBS
