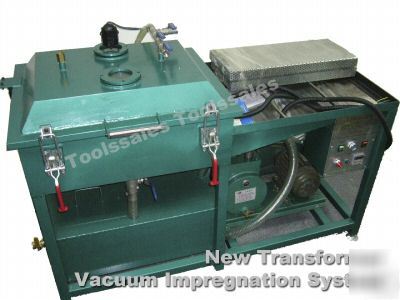

Transformer coil dip varnish vacuum impregnate machine
Transformer coil dip varnish vacuum impregnate machine
* Place the transformer on the rack ( total 4 rack come with the system)
* Open up the vacuum tank. Place the rack into the tank ( 2 maximum)
* Start the process, system will pull vacuum. Ten varnish will dip the transformer and rack for preset time.
Industry level design and construction. Suitable for mass production and heavy duty usage environment.

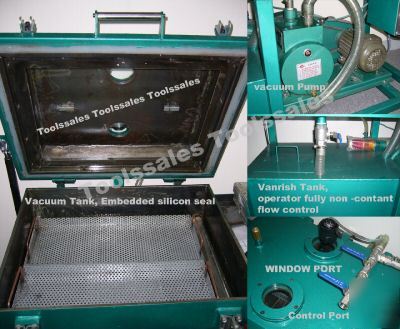

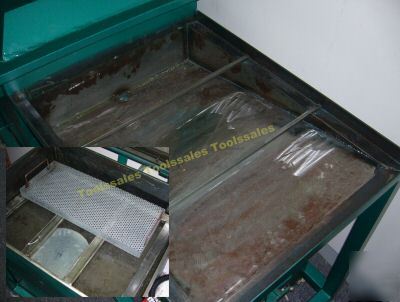

Tank build with 0.375 steel all around to ensure withstand high vacuum pressure.
Tank Cover seal on the top chassis is field replaceable. Large mounting screw clamp the seal silicon on the side, and loose the screw will remove the seal.
Size( Over all): 56 x 29 x 40
Drip Area: 26 x 22 ( internal tank area)
Rack Szie: 23 x 9.5 ( total 4 pc)
Tank Height 6 ( additional 3.5 with 21 x 26 open on top cover)
Varnish capacity: 70 liter ( filled 80% ~ 55liter)
Power requirement: 380V 3A 3 phase power supply
Control: Power, Timer, Light, Pump switch
Tank Light: 12V halogen sport light blub
