Small automatic coil transformer cnc winding machine

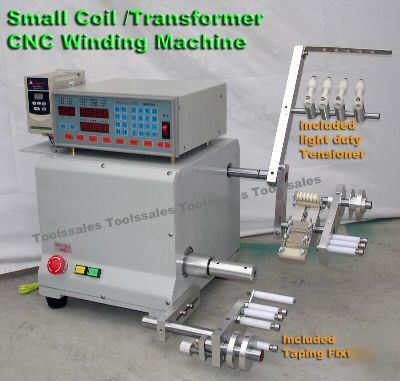

Fully Automatic Transformer CNC Winding Machine
This is a smaller version compare to our large CNC winding machine, the maximum size of wire it hand is 12-14 awg.
STANDARD brushless Motor with frequency converter speed control.
Wire Guide lay down the wire in exact position on bobbin.
Ramp Up, down programmable speed.
Phase speed control unit for very control.
All ball bearing design with smooth slider and shaft movement
Computer slider control. Lead screw and dual shaft bearing system for high accuracy.
Production Counter and management function.
Emergency and start hardware switch, remote foot switch for easy hand-free operation.
Easy program forward, backward, jump, tight/loose type winding.
Shaft Motor build In Indexer, possible exact turns at start position.
3 phase Frequency converter control
so you will get the support you need from getting the machine to production!!

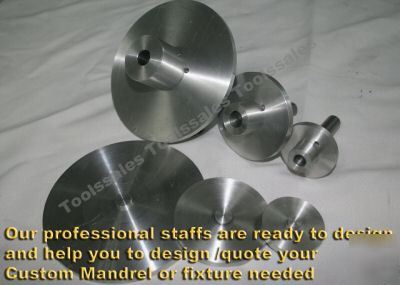

Our professional staffs are ready to design and help you to design /quote your Custom Mandrel or fixture needed, please tell us your need.
All purchased are final, will replace defective product only.
Return package must be in the original packaging, everything must be in new condition. Missing part s or anything in original contact will not qualify for any refund.
Defective item can be exchanged within 7 days of receipt.
Replacement and refunds will not be processed until the return item received.
