Hp agilent 8495G/002/008/011 step attenuator

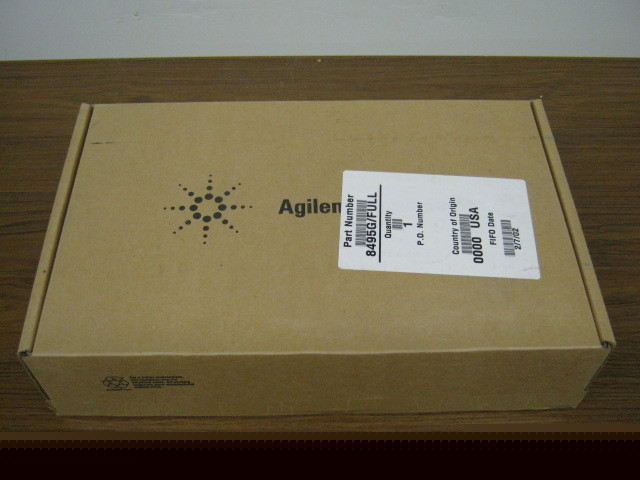

HP Agilent 8495G/002/008/011 Step Attenuator
The Agilent 8495G dc to 4 GHz programmable step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 10 dB steps from 0 to 70 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option 890. A maximum switching time of 20 ms (including contact settling) speeds automatic testing. Custom step attenuator/switch combinations are possible. The Agilent 11716A/B/C interconnect kits provide quick connection of Agilent 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.
* Repeatability life: 0.03 dB maximum, 5 million cycles per section
* Connector type: choice of type-N female, SMA female, APC-7
* Programming connector: 12-pin Viking, optional 14-pin DIP
* Option 002 = SMA female connector
* Option 008 = 14-pin DIP programming connector
* Option 011 = 5VDC Supply Voltage
