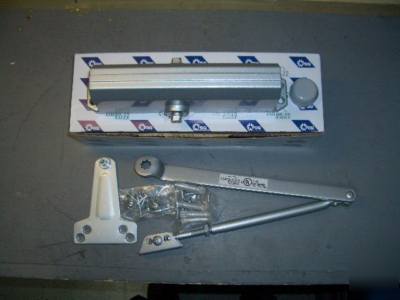

American eagle 3100 door closer -no - lcn norton
Choose between SILVER or BROWN.
Call our shop with any questions (***)-387-3500
SUGGESTED ARCHITECTURAL SPECIFICATIONS
The American Eagle 3100 Series is a rack and pinion closer featuring a cast aluminum body, round style arm assembly and optional streamline cover. Hydraulic control is achieved through separate non-critical sweep, latch and backcheck valve adjustments. Closers are non-handed and suitable for regular, top jamb and parallel arm applications and come with fasteners for wood and metal doors and frames. Sex nuts and bolts are also furnished standard. Closers are available in adjustable versions for sizes 1-4 or 3-6. The 3100 is listed by U.L./U.L.C., complies with UL 10C and UBC 7-2 (1997) for positive pressure and is certified to ANSI A156.4 Grade 1
Adjustable controlled closing / Separate hydraulic backcheck standard
/ Separate sweep, latch and backcheck intensity valves
Adjustable spring size 1 through 4 or 3 through 6 / Available to meet barrier free opening force requirement
Common 9-1/16 x 3/4 mounting hole pattern / Tri-packed for regular, top jamb and parallel arm installations / Optional hold open arm / Optional DS heavy duty parallel stop arm / Sex nuts and bolts standard / Self drilling, self tapping screws available
Streamline plastic cover optional
UL and ULC listed / Complies with UL 10C and UBC 7.2 (1997) Certified to ANSI A156.4 Grade 1
Five (5) year limited warranty
