4.5" conrac hydraulic tube bender, mdl. digicon 255-sx

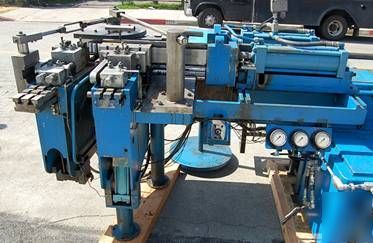

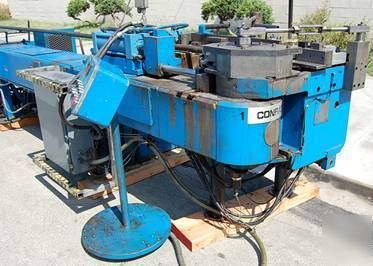

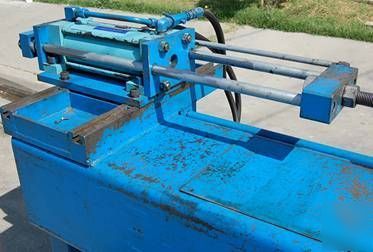

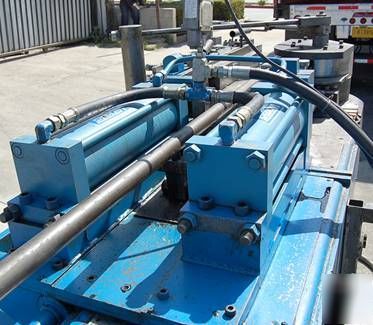

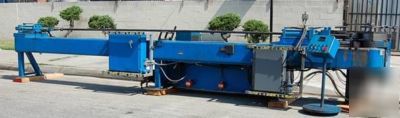

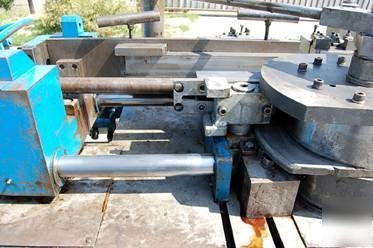

ONE Preowned CONRAC Hydraulic Tube Bender
MDL. DIGICON 255- SX, S/N 84998- 22, MFG 1983
CAPACITY .. .. 4.5
ROUND TUBING . 4.5" X 0.312" W.T.
PIPE ... 4" IPS X SCHEDULE 80
CENTERLINE MAX. WITHOUT BOOSTER . 12"
CENTERLINE MAX. WITH BOOSTER .. 6"
BEND ANGLE (MAX.) 180 DEGREES
MAX. TUBE LENGTH (WITH CARRIAGE) 23'
MAX. TUBE LENGTH (WITH BOOSTER) . 21'
MAX. HYDRAULIC MANDREL EXTRACTION . 12"
PRESSURE DIE BOOSTER WITH TUBE CLAMP .. 12" STROKE
SPEED ADJUSTMENT . 0- 1.3 RPM
OIL CAPACITY 140 GALLONS
DIMENSIONS (L X W X H) 29' X 6' X 63"
WEIGHT 15,000 LBS
MOTOR . 20 HP

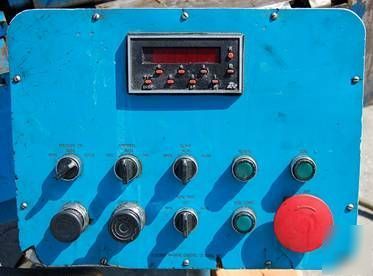

DIGICON DIGITAL PROGRAMMABLE CONTROL
DUAL PRESSURE DIE SLIDE BOOSTERS
PRICE: ON SITE, (SOUTH EL MONTE, CA) ... . $60,000.00
