11" swg hardinge hc-at precision engine lathe, auto thr
11" Swg Hardinge HC-AT PRECISION ENGINE LATHE, Auto thr

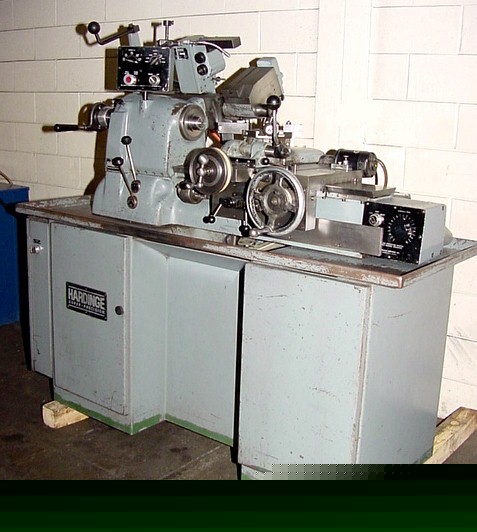

11" Swing Hardinge HC-AT PRECISION ENGINE LATHE, Auto threading
HARDINGE PRECISION CHUCKING LATHE
MODEL HC, S/N HC 5764-T, NEW 1981
MAX FIXTURE DIAMETER ................. 9"
MAX DISTANCE FROM FACE OF TURRET
TO SPINDLE ..................... 14"
WITH ROUND 5C COLLETS .......... 1-1/16"
WITH 5C STEP CHUCKS ............ 1-1/16" TO 6"
WITH JAW CHUCKS ................ 6"
SPINDLE TAPER ........................ HARDINGE THREADED NOSE
TRAVEL OF CROSS SLIDE ................ 4-1/2"
CROSS SLIDE POWER FEED RANGE ......... 11/32 TO 6-1/4 IPM
CARRIAGE POWER FEED RANGE ............ 1/4 TO 10 IPM
VARIABLE SPINDLE SPEEDS, (3 SELECTOR)
LOW SPEEDS ..................... 125 - 1,100 RPM
HIGH SPEEDS .................... 1100 - 3,000 RPM
MAX DIAMETER FOR THREADING ........... 6"EXTERNAL, 5"INTERNAL
APPROXIMATE WEIGHT ................... 1,750 LBS.
- HARDENED AND GROUND DOVETAIL BED
- LEVER-TYPE COLLET CLOSER FOR TYPE 5C COLLETS
- INDEPENDENT ELECTRICAL VARIABLE POWER FEED TO CARRIAGE
- EIGHT STATION CROSS FEEDING TURRET WITH ADJUSTABLE STATIONS
- EIGHT POSITION TURRET-TYPE CARRIAGE STOP
- SELF-CONTAINED COOLANT SYSTEM
- HARDINGE MODEL CT-A AUTOMATIC THREADING ATTACHMENT
- ASSORTMENT OF COLLETS & TOOLING
MACHINE WIRED FOR THREE PHASE 60 CYCLE 230 VOLT OPERATION
