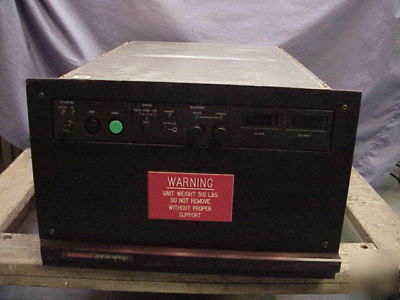

Sorensen DCR55-180T led dc power supply 55V 180A tested
This item has been tested by our Lab Technician UNDER LOAD and it works well.
Flat Rate Truck Freight to anywhere in the continental US of only $129.00. Continental US only.
DCR-T Series 10kW high power programmable power supplies are specifically desiged to meet today s
requirement for the high power burn-in market. The DCR-T Series provides EMI-protected AC line,
0.1% line and load regulation (typical) and features full remote control, full remote monitoring,
OVP shutdown, phase loss, and thermal shutdown. Digital meters are standard. All features are
available under remote control or remote readback.
* 0-55 Volts DC, 0-180 Amps Output
* 480 VAC +/-10%, 60Hz, 3 phrase Input
* Automatic V/I crossover with indicators
* Remote control functions i.e. V/I, OVP shutdown; external meter/indicator drive
* No programming resistors in contract with output, avoids hi-voltage problems with
* 0.1 line and load regulation (typical)
* 40 ms transient reponse 50% change
* Rear connector features: AC control, shutdown, voltage set, current set, OVP set,
local/remote I meter, remote E meter, OVP indication, thermal/phase indication, remote sense
Full Model Number: DCR 55-180T 5M14A
Follow this link for more information CLICK HERE
We will pack supply securely in a wood crate at no extra cost to you.
