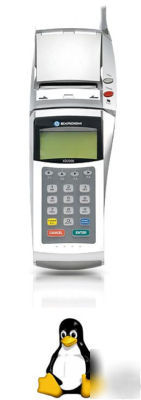

New exadigm XD2000 wireless credit card terminal w/opti
The XD2000 is built with Linux based software and PC Style components for the best possible flexibility and upgrade-ability.
* NO internal PinPad (optional external pinpad may be used)
* MUST decided BEFORE you order if you want GSM/CPRS or CDMA (same price)
* SIMM card required with this unit - you must ask your merchant service provider WHICH SIMM card you need/they support
* Battery pack with built-in charger
* High capacity Lithium-ion 7.2V DC removable battery
* APM - Advanced Power Management
* Height: 3.75" (9.53cm)
* Width: 10.38" (26.35cm)
* Thickness: 3.75" (9.53cm)
* Weight: 25 oz (0.709kg)
* 132 x 64 pixel graphical LCD with back lighting
* Time and date indicator
* 32 F to 104 F (0 C - 40 C)
* 90% maximum relative humidity
* 3x4 back-lit numeric keypad with 4 soft function keys
* 3DES and DUKPT functionality
* Reads ISO track 1 and 2
* 3 track reader (optional)
* 8MB Flash ROM expandable to 32MB
* 16MB SDRAM expandable to 64MB
* 2 x RS-232 port for peripherals including external PIN pads and check readers
* 32 bit ARM 7 RISC microprocessor / 100 MHz processing speed
* Integrated graphic thermal printer, 57mm large capacity paper roll capacity
* 12 lines per second, 24 or 32 columns
* Multi-language font capability that can be scaled double-high, double wide, or double-high and double wide
* 128-bit, 256-bit, 512-bit, 1024-bit and higher SSL encryption support
* Add $129.95 - External debit pinpad - use the Verifone Pinpad 1000 SE
