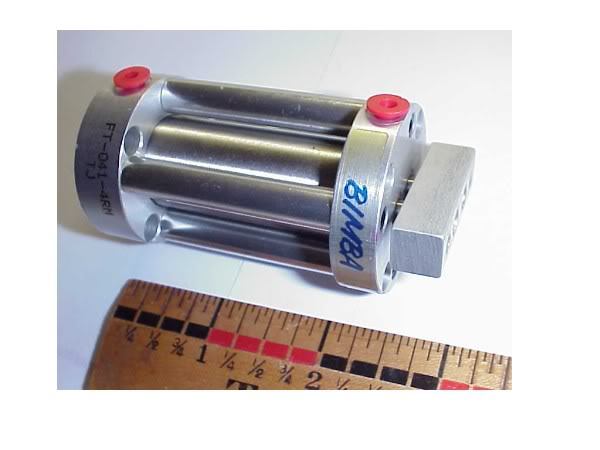

New bimba ft-O41-4RM flat ii pneumatic air cylinders-
BIMBA FT-O41-4RM FLAT II NON-ROTATING PNEUMATIC CYLINDERINDUSTRIAL PROCESS SURPLUS
Flat-II nonrotating, double-acting cylinder provides the answer to applications where rotation cannot be tolerated and space is at a minimum. Nonrotation is achieved with dual piston rods and a rod end block that insures the rods work in tandem. Flat-II eliminates the need for external alignment devices, such as guides, rods and alignment posts or pins.
Body 4301 Stainless Steel Heads Anodized Aluminum Alloy Piston Rod Ground and Polished 4305 Stainless Steel Piston Seals Buna N Block V (High temperature seals optional) Rod Bushing Oil Impregnated Bronze Rod Seals Buna N O-ring (High temperature seals optional) Tie Rods 4305 Stainless Steel Rod End Block Anodized Aluminum Alloy Pressure Rating 14 Bar Maximum (Air only) Temperature Rating From -25 C to +65 C Buna N seals with a temperature range of -25 C to +65 C are standard in all Bimba air cylinders. Fluoroelastomer seals rated for higher temperature applications are available. If cylinders are operated below -18 C for extended time periods, special modifications may be required.
