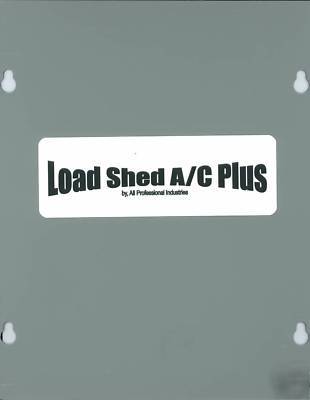

2162 generator load shed a/c plus 60Aâ„¢
Load Shed A/C Plus Installation Manual
Load Shed A/C Installation Kit
**Requires 2 Install Kits Model 2157
Instead of sizing a generator to power two or more air conditioners to run at the same time, use the Load Shed A/C on a smaller generator and still have all the air conditioning.
Save $thousands$ with the Load Shed A/C by reducing the size generator needed to power your air conditioning during an outage.
Each LOAD SHED A/C PLUS 60A rotates 2 air conditioners on 2 adjustable timers and turns off any size load up to 60 Amps up to 600V automatically while on an automatic generator.
Up to 9 Load Sheds may be connected to each generator system, controlling up to 18 air conditioners and 1 2-pole circuit at once!
The Load Shed A/C Plus is meant to reduce loads to match the generator supply.
Dimensions: 14.25"T x 10.25"W x 8.5"D
The Load Shed A/C Plus requires 2 Installation Kits, 1 conduit and 2 low voltage thermostat wires.
* A control line from the transfer switch to the Load Shed A/C.
* 1-pole or 2-pole circuit that you want off during generator operation.
* Thermostat wire Only 1 wire is needed from each thermostat. That 1 wire from each thermostat is normally closed in utility and opens and closes on two adjustable timers during an outage using the Load Shed A/C on a generator with an automatic transfer switch.
Manufacturer: All Professional Industries
