#10199 - 39" schiess model KE100 vertical boring mill

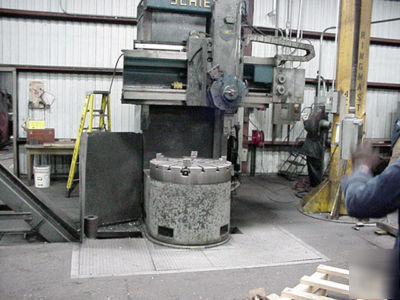

39" SCHIESS MODEL KE100 VERTICAL BORING MILL
Max. turning dia./table diameter 39"
Max. turning diam. with side head down 45"
Max. turning height over table 43"
Max. vertical tool travel for rail head 27-1/2"
Max. distance table to cross-rail turret 52"
Max. horizontal tool travel for side head 21-1/2"
Max. distance table to bottom of side head turret 29-1/2"
Vertical travel of cross-rail 29-1/2"
No. of horizontal, vertical, and angular feeds, each 12
Feeds per table revolution .0023" - .262"
Rapid traverse of heads per minute 89"
Travel of cross-rail per minute 15-3/4"

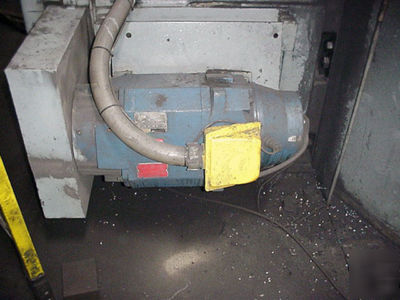

25HP AC Main drive motor, Reliance electric

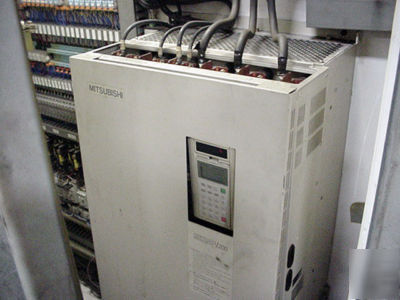

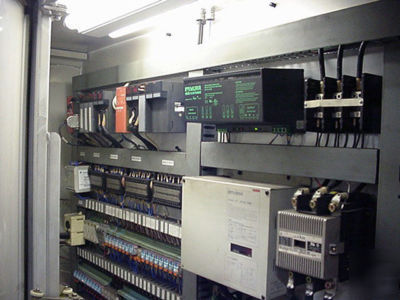

Mitsubishi pendant controls in 1999

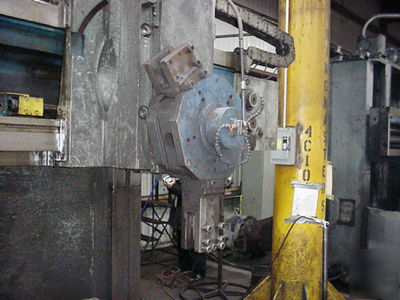

5-Position turret head, swiveling
