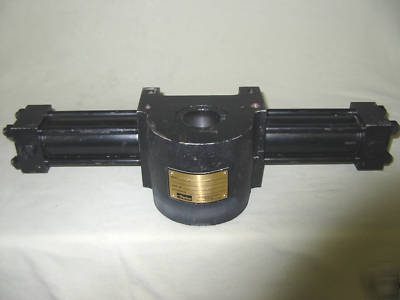

Rotary actuator, 180 deg, hydraulic, 3000PSI, parker

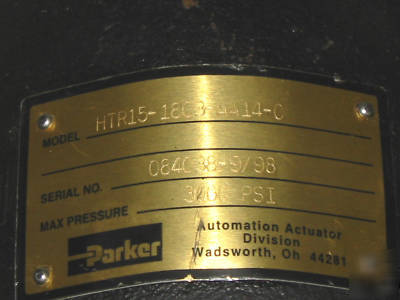

PARKER MODEL #HTR15-1803-AA14-C
2" INSIDE DIAMETER HOLLOW DRIVE WITH 1/2" KEYWAY
THERE ARE 4 - 1/2"-13 MOUNTING HOLES ON THE FRONT AND REAR MOUNTING SURFACES
MAX HYDRAULIC PRESSURE, 3000PSI

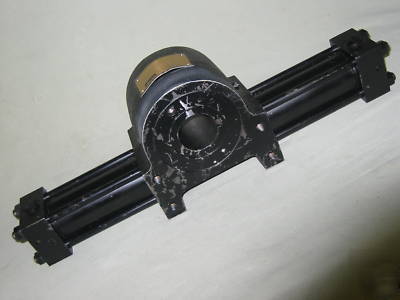

DIMENSIONS, LOOKING AT PICTURE #5, OVER ALL LENGHT, 22 5/8", HEIGHT, 7"

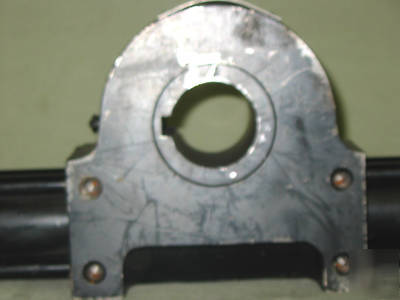

DIMENSIONS, LOOKING AT PICTURE #6, MOUNTING SURFACE IS 7" WIDE X 7" TALL, WITH 4 - 1/2"-13 HOLES IN EACH SIDE, HOLE PATTERN, SIDE TO SIDE IS 5 7/8", TOP TO BOTTOM IS 2"
FROM BOTTOM OF MOUNTING SURFACE TO CENTER OF 2" BORE IS APROX. 4 1/16"

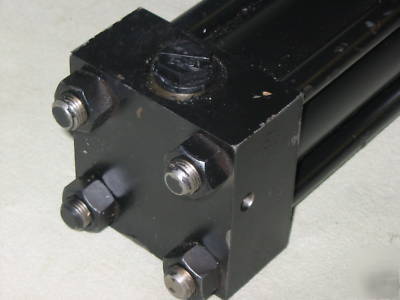

DIMENSIONS, LOOKING AT PICTURE #4, THICKNESS IS 5"
CONSTRUCTION, CYLINDERS AND END CAPS ARE STEEL, CENTER HOUSING IS IRON
THIS IS A VERY HEAVY DUTY ROTARY ACTUATOR
