Hp-3457A 6.5-digit, lab-quality, top refurb, nist cal

Refurbished W/NIST-Traceable Calibration, Lab-Quality, Warranty!
With Front- And Rear-Panel Connections And HP-IB Interface

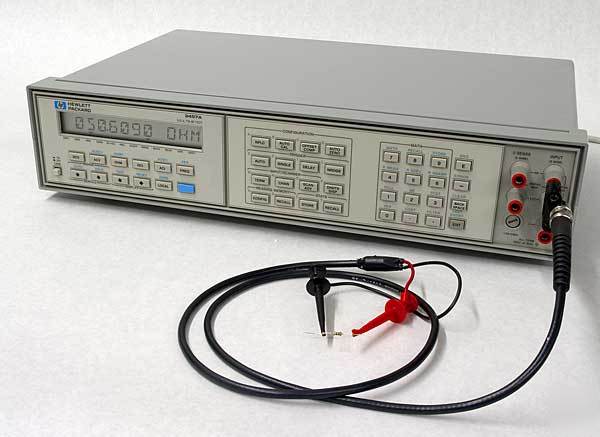

The HP-3457A is an advanced technology, lab-quality multimeter with many sophisticated features, 6-1/2 digit LCD display, in a lightweight, compact housing. This very versatile instrument is at home on the workbench or in an automated testing environment using the built-in HP-IB interface. The HP-3457A will measure AC voltage and current, DC voltage and current, AC + DC volts and current, 2- and 4-wire ohms, frequency and period.
This outstanding meter is capable of 0.10-nanovolt resolution, with maximum voltage readings of 300V (AC or DC; max input level 450V). Ohms from 10 micro-ohms to 3.03 G-Ohm (3030-MOhms) can be measured. Current measurements can be as low as 100-pA to 1A maximum (fused at 1-1/2 Amps). Typical accuracy (on three-volt range) is 0.00035%, +5 counts over a 24-hour period at 23 C 1 C.
If you need very high accuracy, sophisticated multimeter capable of taking automatic readings at over 1000 samples per second consider the HP-3457A.
Completely Refurbished Inside And Out!
Like-New Internals, Excellent Cosmetic Condition.
Calibrated To NIST-Traceable Standards (Cal. Certificate Provided).
New 10+ Year Life Lithium Backup Battery (Retains Calibration-Constants)
Complete Calibration And Performance Validation, System Burn-In for 48 hours.
Includes Extensive User & Service Manuals on CD and 90-Day Warranty.
This is a remarkable meter in many ways. It is lightweight, very reliable, easy to use, doesn't require long warm up times, and is extremely accurate. The HP-3457A is an outstanding multimeter for the serious designer and electronics lab. One of the reasons that it is so accurate with minimal warm up time is that it generates very little heat in the first place. It has no fan (it's silent) and the cabinet is barely warm to the touch after it has been on for hours.
The cabinet was refinished with our tough, light-gray, industrial enamel finish (professionally applied). The original HP User Manual is supplied on CD (PDF Adobe Reader file); you can download a copy here.
HP-3457A Instrument Specifications:
* Microprocessor based (enhanced MC6800 @ 2Mhz) with 16-bit address bus and 8-bit data bus, fully guarded, integrating Digital Multimeter is designed for bench use or with automatic testing systems.
* Measures DC, true RMS AC Voltage, AC current, DC current, AC + DC voltage and current, 2 and 4-Wire Resistance, Frequency and Period. Displays up to 6-1/2 digits (7-1/2 digits of precision are available through the Extra Resolution math function).
* Up to 1350 readings per second.
* Input resistance is 10 GOhms on 30mV through 3-Volt ranges; 10 MOhms on 30-Volt through 300-Volt ranges (+/- 1%).
* Accuracy on three-Volt range is 0.00035%, +5 counts over a 24-hour period at 23 C 1 C.
* 10 micro-ohm to 3.03 G-Ohm resistance measurement capability; Offset compensated ohms (O-C )
* Five full-scale, true RMS AC voltage ranges are provided that are capable of resolving signals from 20 HZ to 1MHz. Best accuracy is 0.07%. Crest factor is 3.5 to 1 at full scale.
* Thirteen built-in Math Functions, including: Null, Scale, Percent, dB, dBm, Filter, Thermistor (F), Thermistor (C), Statistics, Pass/Fail, and Extra Resolution (with Extra Resolution 7.5 digits of resolution are possible using register reads; best performed with HP-IB and external processing; consider our easy-to-program, refurbished HP-85 computers that can interface with this multimeter).
Size: H 89mm, W 425mm, D 292 mm (H 3-1/2 x W 16-3/4 x D 11-1/2 inches); Weight: 5.05 kg (11.1 pounds)
Power Requirements: 100/120/240 volts +/-10%, 48Hz to 66Hz, 30 VA maximum.
Warm-Up Time: One hour to meet all rated specifications.
* HP-3457A Specification Details
DC Voltage __________________________________________________
Max Reading - Resolution - Input Input
Range (6-1/2 digit) 6-1/2 digit 5-1/2 digit 4-1/2 digit Resistance Voltage
30mV 30.30000 mV 10 nV 100 nV 1 uV 10GOhms 450V
300mV 303.0000 mV 100 nV 1 uV 10 uV 10GOhms peak
3V 3.030000 V 1 uV 10 uV 100 uV 10GOhms
30V 30.30000 V 10 uV 100 uV 1 mV 10 MOhms 1%
300V 303.0000 V 100 uV 1 mV 10 mV 10 MOhms 1%
AC True RMS Voltage_________________________________________
Range (6-1/2 digit) 6-1/2 digit 5-1/2 digit 4-1/2 digit Impedance Voltage
30mV 32.50000 mV 10 nV 100 nV 1 uV 1 MOhm/<90pf 450V
300mV 325.0000 mV 100 nV 1 uV 10 uV 1 MOhm/<90pf peak
3V 3.250000 V 1 uV 10 uV 100 uV 1 MOhm/<90pfs
30V 32.50000 V 10 uV 100 uV 1 mV 1 MOhm/<90pf
300V 303.0000 V 100 uV 1 mV 10 mV 1 MOhm/<90pf
Crest factor: > 3.5:1 at full scale
Common mode rejection (1 kOhms imbalance in LO Lead): > 76 dB DC to 60 Hz
Resistance (2-Wire Ohms, 4-Wire Ohms)______________________________
Max Reading - Resolution - Current Max Max Open
Range (6 1/2 digit) 6 1/2 digit 5 1/2 digit 4 1/2 digit Volt Voltage
30 30.30000 10uOhm 100uOhm 1mOhm 1 mA +/-350 12 V
300 303.0000 100uOhm 1mOhm 10mOhm 1 mA +/-350 12 V
3 k 3.030000 1mOhm 10mOhm 100mOhm 1 mA +/-350 12 V
30 k 30.30000 10mOhm 100mOhm 1 Ohm 100 uA +/-350 12 V
300 k 303.0000 100mOhm 1 Ohm 10 Ohm 10 uA +/-350 12 V
3 M 3.030000 1 Ohm 10 Ohm 100 Ohm 1 uA +/-350 8.5 V
30 M 30.30000 10 Ohm 100 Ohm 1 KOhm 100 uA +/-350 8.5 V
300 M 303.0000 100 Ohm 1 KOhm 10 KOhm 100 uA (1) +/-350 8.5 V
3 G 3.030000 1KOhm 10KOhm 100KOhm 100 uA (1) +/-350 8.5 V
(1) Ohms source is a 100 nA current source in parallel with a 10 MOhm resistance
Math Functions________________________________________________
Thirteen Built-In Math Functions, Including: Null, Scale, Percent, dB, dBm, Filter, Thermistor (F), Thermistor (C), Statistics, Pass/Fail, and Extra Resolution (to 7.5 digits).
Memory______________________________________________________
Reading Storage, Subprogram Storage, State Storage: All share 2208 bytes. Can be allocated to each of the three memory areas as needs require.
Reading read: Readings can be recalled through HP-IB interface or from front panel.
Memory size: Total memory size 2208 bytes. 1 byte per ASCII character stored plus 4 bytes per reading stored.
The HP-3457A is capable of post-processing measurements with up to thirteen Math functions. It is a 6-1/2 digit multimeter, however, using Extended Resolution it can resolve 7-1/2 digits through HP-IB interface commands.
Another powerful feature of this instrument is the built-in, user-accessible Auto-Calibration routines that maintain optimum accuracy through time and temperature changes; just press a couple of front-panel buttons to perform Auto-Calibration.
The HP-3457A has both front and rear terminal connections that can be used to measure 2- and 4-Wire Ohms, Voltage, Current, Frequency and perform Reference Measurements between two sources. Both Front and Rear terminals were calibrated. Front and rear input is easily selected from the front panel or through HP-IB. The HP-IB interface is located at the lower right of the rear panel.
This HP-3457A comes with new, quality, screwed-on rubber feet (no stick-ons!). They will last a lifetime and keep your multimeter firmly in place on your workbench.
A similar instrumentation setup was used to calibrate this HP-3457A. Our NIST-Traceable Calibration requires several hundred steps and more than 1000 data input and outputs. Needless to say, this can take several hours for a technician to complete and is susceptible to human error. By using our custom calibration software, we ensure that each step is performed in the right sequence and with the correct calibration inputs. In addition, the computer provides a permanent printed record of the process.
This HP-3457A is fully refurbished, calibrated (NIST-Traceable Calibration Certificate provided) 100% operational, and comes with a 90-day warranty against malfunctions. Unit includes HP-IB (GP-IB) and front and rear terminal connections. Complete with HP User & Service Manuals on CD. Unit is in excellent electronic and cosmetic condition condition.
This item is guaranteed to meet the descriptions provided. If you receive the item and you feel it does not work properly or match our descriptions, let us know and we will make every attempt to correct the problem, including if necessary providing a full refund..
All items won by California residents will be subject to 7.75% sales tax. If you are a reseller, you can mail or fax your reseller certificate to (***) 283-3130 to wave sales tax on this and future purchases.
Returns: If you receive defective, damaged, or DOA merchandise, you have 5 business days to notify us of this situation. After 5 days, a refund or other corrective action WILL NOT BE POSSIBLE.
Thank you for visiting our action.
