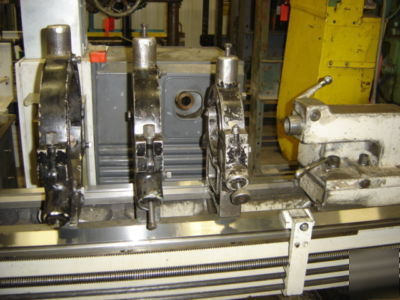

6717 leblond makino 19" x 108" lathe 3" hole

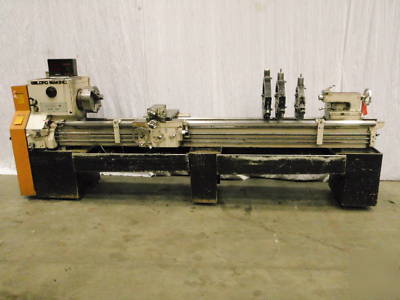

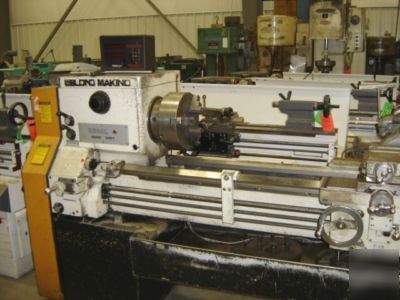

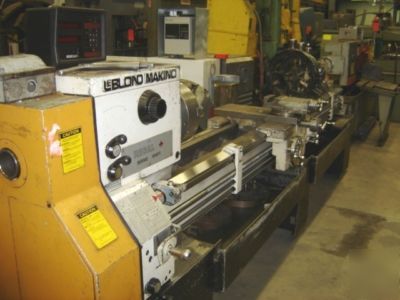

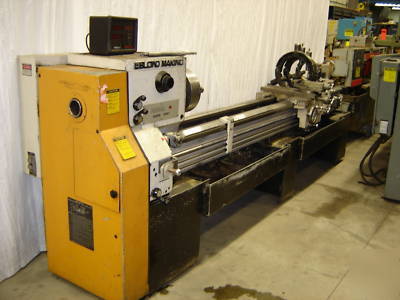

19" x 108" LEBLOND MAKINO SERVO SHIFT LATHE
Swing over bed & carriage wings 19 "
Headstock Spindle speeds, number 12
Spindle speeds, range in rpm 25-1000 low 38-1500 high
Spindle, size of center, Morse No. 4
Spindle, diameter of hole, straight 3"
Spindle nose, taper key drive, size L1

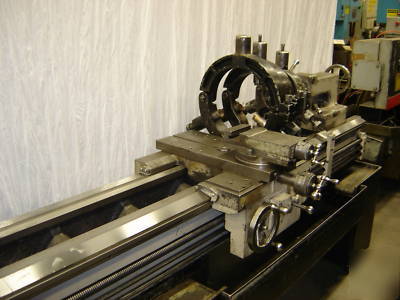

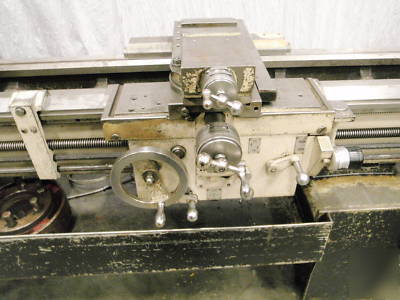

Carriage Bearing surface, square inches 86
Feed & Thread Range Feed changes, number 48
Range of feeds per revolution 0.0023"-0.132"
Range of threads per inch 2-112
Tailstock Spindle diameter 2 7/16"
Motor max hp & rpm recommended 5 & 1800
Lathe is equipped with Anilam DRO.
