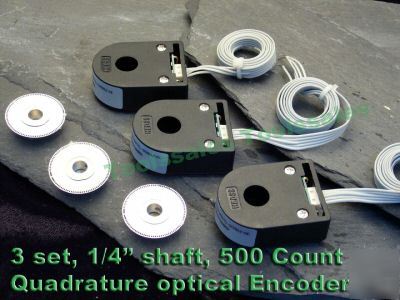

3 pc 500 line revolution quadrature optical encoder
* Quick, simple assembly and disassembly
* Rugged screw-together housing
* Accepts .010" axial shaft play
* 500 pulses per revolution (PPR)
* 2 channel quadrature TTL squarewave outputs
* Optional index (3rd channel)
* -40 to +100 C operating temperature
* Mounting compatibility with Agilent HEDS-5500
* Fits shaft diameters .079" to .394" or 2mm to 10mm
* Flush back, through shaft hole, or extended back
* Flat or self-aligning base
* Adapts to 1.812" bolt circle (2 or 3 holes)
* Encoder is normally designed for applications of 6 feet or less. For longer cable lengths. The base and cover are both constructed of rugged 20% glass filled polycarbonate. Attachment of the base to a surface may be accomplished by utilizing one of several machine screw bolt circle options. Positioning of the base to the centerline of a shaft is ensured by use of a centering tool (sold separately). The cover is securely attached to the base with two 4-40 ( M2.5) flat head screws to provide a resilient package protecting the internal components.
* The base and cover are both constructed of rugged 20% glass filled polycarbonate. Attachment of the base to a surface may be accomplished by utilizing one of several machine screw bolt circle options. Positioning of the base to the centerline of a shaft is ensured by use of a centering tool (sold separately). The cover is securely attached to the base with two 4-40 flat head screws to provide a resilient package protecting the internal components.
* The internal components consist of a shatterproof mylar disk mounted to a precision machined aluminum hub and an encoder module. The module consists of a highly collimated solid state light source and monolithic phased array sensor, which together provide a system extremely tolerant to mechanical misalignments.
* Connection to this product is made through either a 5-pin locking or standard connector (sold separately).
