N-1000-iv northern computers honeywell access 4-door
We recently changed over our complete system to another brand and had been using these (without issue) in one of our sites. It's a

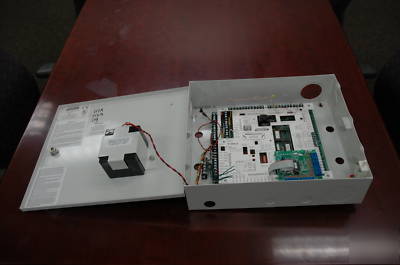

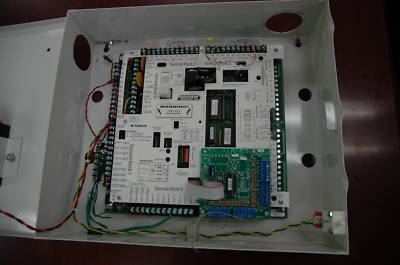

N-1000-IV Northern Computers (Honeywell Access Ademco) 4 - card reader control unit. The board alone retails for over $1000.00.

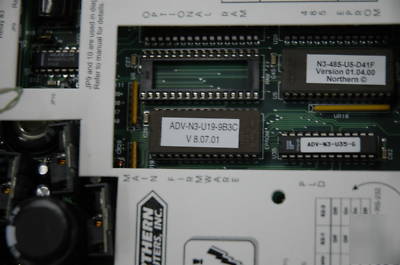

Software / Board and Bios info: ADV-N3-U19-9B3C (Version 8.07.01)
The N-1000-IV panel monitors 16 supervised or unsupervised alarm points, and supports four relay outputs (DPDT) that are expandable to 20 outputs.
For applications where a large number of outputs are necessary, the N-1000-IV-X may be an option. The N-1000-IV-X has eight (DPDT) relay outputs and is expandable to 24 outputs
The panel operates as a total stand-alone unit with a fully distributed database. All valid card numbers, timezones, relay pulse times, and alarm point shunt times are loaded into the controller's memory. The panel controls access to multiple doors on a stand-alone basis with no dependency on a central computer system.
The N-1000-IV is compatible with Northern's WIN-PAK 1.15 or higher software and the N-1000-II.
