New tan itz 16" xjs, 44.5" slide table, 7.5HP, o.k., 3PH

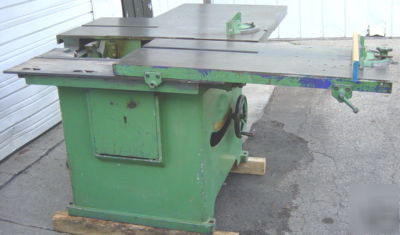

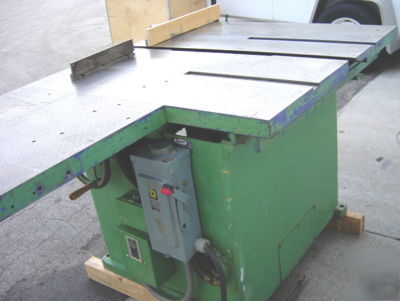

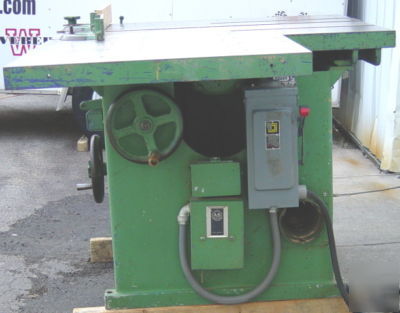

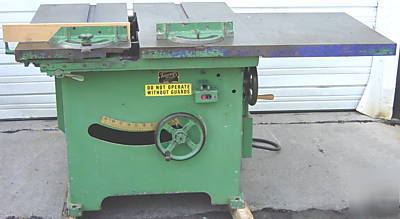

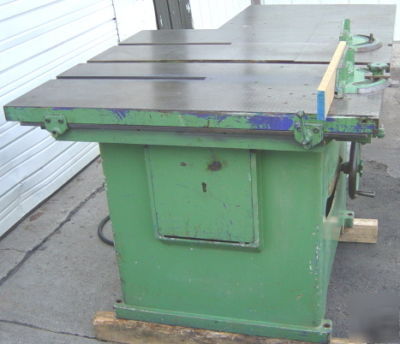

Tannewitz XJS Table saw. Serial 74234 O.K. Condition for age. Cleaned checked, runs smooth and quiet. Missing part of rack and pinion fence. A Biesemeyer fence would bolt up nicely though. Original guard is also missing. One locking handle on the two miter guages is mssing. Dust chute access door is present. 16" blade capacity saw with 7.5 hp direct drive 220/440 60 cyc. 3 phase. 1 " Arbor spindle. Sliding 20" x 44.5" Cast Iron polished table. Still slides smooth, 2 locking handles, one is broken/doesn't lock. Stationary Cast Iron Polished Table size 22" x 44.5", additional Cast Iron side table 25" x 30" Approx. working height 33" Right tilt, front and right 10" cast iron handwheels for easy adjustment of tilting, raising and lowering of arbor. Depth of cut, approx. 4" Dado Cap. approx. 3/4" Original Right and Left miter gauges. Heavy duty base formed from hot rolled steel of 5/16" thickness and welded into one solid unit. Tables and trunnion made of cast iron.
Machine can be loaded at no charge.
Framing or crating will incur additional charges, if needed Please Email or call 1-(***)-793-4494 if interested in this machine.
Recently updated showroom! Updated showroom features the following new equipment: A Kentwood 5 Head Moulder and Kentwood Profile Grinder, an Oliver rip saw, an Oliver planer, an Oliver band saw, and an Oliver 12" Jointer. A New Lobo 37 1 Head sander and Lobo 20 inch economical planer are also on display. Additional late model and popular used machinery will also be in the showroom.
Many other new and used machines are stored in our warehouse and can be viewed.
Minimum $125.00 Crating Fee, if required.
Freight, rigging, and installation are not included unless otherwise specified, but arrangements can be made at an additional
