B&k endevco 2685M4 airborne isotron charge amplifier

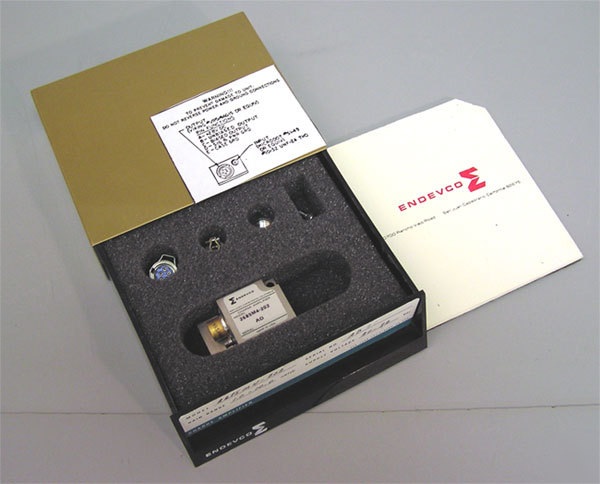

B&K Endevco 2685M4 Airborne ISOTRON Charge Amplifier
Use the links below to View More Images of the Bruel & Kjaer Endevco 2685M4 Airborne
ISOTRON Charge Amplifier 2685M & Accessories
Bruel & Kjaer Endevco 2685M4 - second view w/ accessories
Bruel & Kjaer Endevco 2685M4 - 3rd view close up
Bruel & Kjaer Endevco 2685M4-202 Airborne ISOTRON
Charge Amplifier 2685 & Accessories
Airborne ISOTRON Amplifiers
* For Use with ISOTRON Transducers
* Small, Rugged, Light Weight
* Dual Outputs, Biased and Unbiased
* Optional Low Pass Filter
The ENDEVCO Models 2685M1-XXX through M7-XXX Conditioners are airborne
devices designed for use with integral electronics low impedance transducers. Hybrid
microcircuit construction results in small size, ruggedness and low power consumption.
The 2685 provides a constant current source to power the integral electronics of the
transducer while maintaining a two wire connection. The use of modular
construction techniques permits great versatility in gain and filter choices. Both
outputs are adjustable with a common gain control.
The use of modular construction techniques permits great versatility in gain and
filter choices. Both outputs are adjustable with a common gain control
