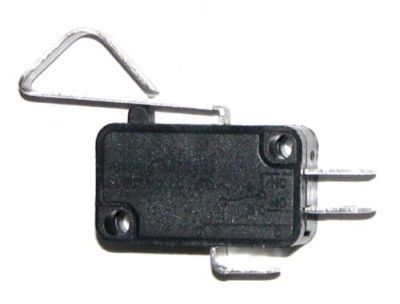

10X 15A curving long lever microswitch micro switch AC2
* Safe, reliable basic switch
* Nice appearance, tight configuration, Characteristic: small contact clearance, quick action, high sensitivity and small operating travel
* Long life, high reliability
* A variety of models with low operating force to high operating force are available
* Adopt thermosetting plastic or thermoplastic
* Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electric motion tool etc
* Operating speed: 0.1mm-1m/s(related with actuator forms)
* Mechanical operating frequency: 60 cycles/min
* Electrical operating frequency: 25 cycles/min
* Insulation resistance: 100 M (500VDC)
* Contact resistance: 30 M (initial value)
* Test voltage: Between terminals of the same polarity: AC1000V, 50/60Hz, 1min; Between current-carrying metal parts and ground (case), and between each terminal and non-current-carrying metal parts: AC3750V, 50/60Hz, 1min
* Vibration resistance: 10-55Hz,1.5mm Double amplitude
* Destruction shock resistance:
OF>0.5N: 1000m/ s2 (approx.100G)max; OF 0.5N: 400m/s2(approx.40G)max;
* Malfunction shock resistance:
OF>0.5N: 200m/ s2 (approx.20G)max; OF 0.5N: 100m/ s2 (approx.10G)max
* Mechanical life span: 1,000,000 cycles
* Electrical life span: 100,000 cycles
