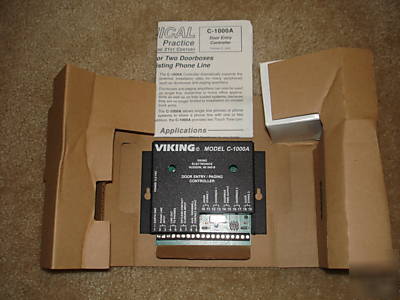

Viking electronics door entry page controller - c 1000A
The C-1000A Controller dramatically expands the potential installation sites for many peripherals such as doorboxes and paging amplifiers.
Doorboxes and paging amplifiers can now be used on single line, residential or home office applications as well as on fully loaded systems, because they are no longer limited to installation on unused trunk ports.
The C-1000A allows single line phones or phone systems to share a phone line with one or two doorboxes or paging amplifiers. In addition, the C-1000A provides two Touch Tone controlled relays to operate door strikes or gate openers.
* Add one or two Viking Doorboxes to your home or office phones
* Add paging amplifiers to provide loud ringing and paging to offices with single line phones or fully loaded phone systems
* Provide commercial or residential security via two-way handsfree communication at the door and gate
* Use as a line concentrator (one answering machine can answer three lines)
* Allows two Viking doorboxes or paging amplifiers to share a single telephone line with a residential or business telephone system
* May be used with Viking door phones, paging amplifiers, single line telephones, PABX systems, Electronic key systems or 1A2 Key systems
* Custom ringing mode allows you to distinguish doorbox calls from C.O. calls
* Compatible with the following handsfree Viking models: W-1000, W-2000A, W-3000, E-10 and E-20A (only one E-10 or E-20A may be used)
* Call waiting tones indicate which doorbox is call-ing and distinguish a doorbox call from a C.O. line call
* Calls can be placed on hold when visitors call from the doorbox or when paging
* Provides two Touch Tone controlled; N.O. and N.C. dry contact closures for door strikes or gate openers
* Compatible with pulse or Touch Tone phones
* Built-in talk battery for no C.O. applications
* Auxiliary contact output for doorbells, cameras, etc.
* Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided
* Dimensions: 133mm x 89mm x 44mm (5.25" x 3.5" x 1.75")
* Environmental: 0 C to 32 C (32 F to 90 F) with 5% to 95% non-condensing humidity
* Relay Contacts: 5A @ 30V DC/250V AC maximum
* Connections: (2) RJ11 jacks, (1) 12 position terminal block
* Pulse Dialing Detection: 10 pps
