Swintec 8014S 8014 office electric typewriter

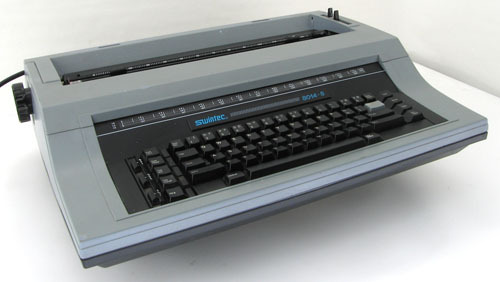

Swintec 8014S Office Typewriter
Pulled from a working environment and tested. Great condition! Needs a new ribbon
The 8014 has all the electronic features needed for efficient typing: 202 characters of correction memory, a relocation key for quick positioning after correcting, forward and reverse indexing, stencil mode, and repeat capability on all keys. Standard on every 80 14 is a Keyboard II key which accesses 10 extra characters above the number keys. With this feature, footnote numbering. bulleted itemizing, and trademark registrations can be incorporated into routine typing without switching printing elements A vertical line character on the Keyboard II provides the capability for graphs and charts. Typing speeds up to 16 characters per second are possible, with a 30 character buffer memory for extra-quick spurts of typing. The 8014 uses an interchangeable 100-character daisy printwheel - the same flexible printing method used by the newer computer printers. Daisy wheels are available in all of the popular type styles and there is a choice fo three types of ribbon, including one that comes in colors [brown. blue, red).
culptured Keyboard: For ease of typing Memory Back-up Power Supply: 30 day retention of margins, tabs
N-Key Roll Over System: Enables multiple keys to be depressed and printed in the exact order struck
Printable Characters: 100 Number of Keys: 46
Keyboard Layout: Standard American Keyboard Layout
Typing Speed: 16 CPS Correction Memory: Full line 1202 characters)
Key Buffer: 30 characters Pitch Selector: 10, 12, 15
Impression Selector: Light-Medium-Heavy Copy Capacity: 1 original + 5 copies (Normally)
Line Spacing Selector: I, 1V2, 2 lines and variable spacing manually
Automatic Paper Injector: Motor driven
Cursor Locator, Shift Key Lock: LED Indicator
Tab Set/Clear Key: Programmable at 24 positions
Express Key: Carriage return without line feed Relocation Key: For quick return from typing correction
Half Space Key: For special spacing and insertion of characters
Keyboard II Key: Allows access to 10 nonstandard characters.
Independent Repeat Key: For multiple operations
Deep-Depress Repeat Action Keys: Space Bar, Correction Key Back Space Key Index, and Reverse Index Keys
Margin Release and Half Space Key: Stencil mode
Paper Stand: With adjustable paper guide Sound and Glare Shield: For quiet easy readable typing
Power: 60 HZ, 115V AC, 60 Watts
UL Approval: Standard No. 114 Dimensions, Weight: H-6 in, W-21 in, 0-16 in, 25 Ibs.
