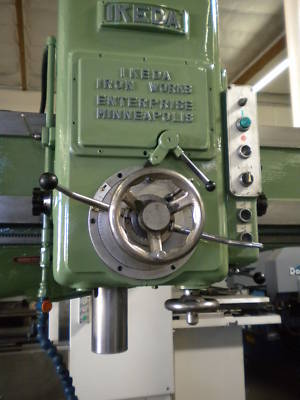

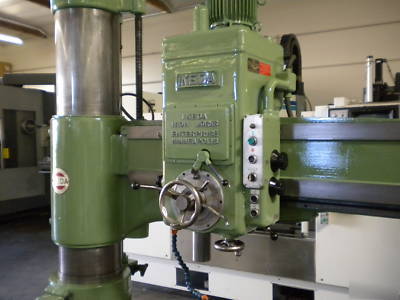

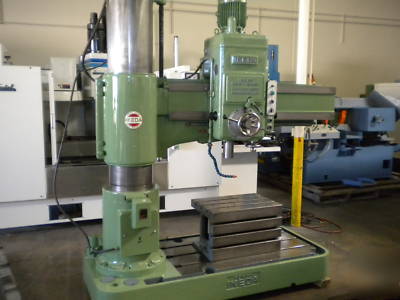

Ikeda RM1300 radial arm drill
* SPINDLE SPEEDS 30- 1440 RPM
* FEEDS .004 .008 .013 .021 IPR JACOBS DRILL CHUCK
* SPINDLE TRAVEL 10'' TEE SLOTTED BOX TABLE
* SPINDLE DIAMETER 3 3/8 MANUAL HEAD TRAVEL ON RAIL
* SPINDLE TAPER #5MT MOTOR 5HP 220/440
* WORK AREA OF BASE 36''X 51'' DIMENSIONS OF MACHINE 0 APPROX 80''LR X42'' FB X 96'' H
* DISTANCE SPINDLE TO COLUMN10'' MINIMUM 48'' MAXIMUM
* DISTANCE SPINDLE TO BASE 15'' MINIMUM 49'' MAXIMUM
* DRILLING CAPACITY CAST IRON 2 5/8
* TAPPING CAPACITY CAST IRON 2''
* COOLANT IN BASE AND COOLANT PUMP
