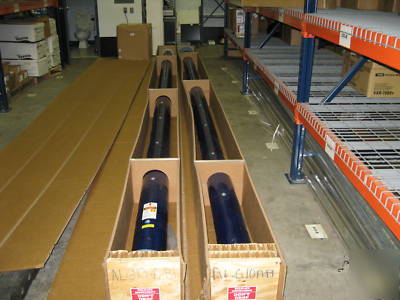

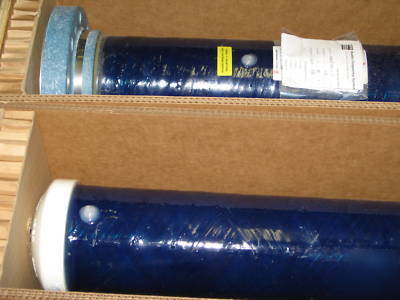

Rfs celwave penetrator antenna ALG10-a-B1 450-470MHZ
The Penetrator antenna is based on the proven Bogner design, which is well known for its null filling capability. We have several of them that have been in service for more than 20 years through harsh New England winters and a hurricane or two with no problems. More / larger photos may be available, ask.

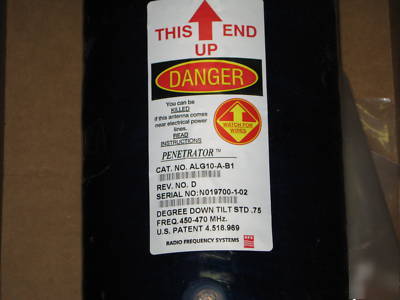

* Radio Frequency Systems Catalog No: ALG10-A-B1
* Frequency Range: 450 - 470 Mhz
* Pattern: 220 degree directional with 0.75 Degree Electrical Down Tilt

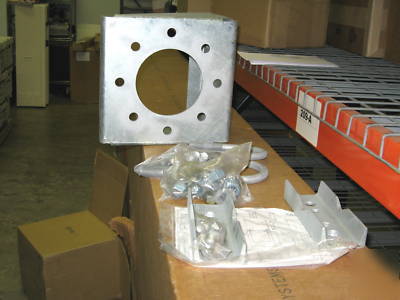

* B1-HD Mounting Brackets with Hardware are Included
* Length: 20 ft.; Diameter: 6.625 in.; Weight: 92 lbs. (with bracket, 124 lbs.)
* Gain, dBi (dBd) 14.4 (12.3) Front-to-back ratio 8dB
* Connector Type / Location: N Female, Bottom; Impedance: 50 ohms
* Power Capability: 500W Continuous; VSWR: <1.5:1
* Rated Wind Speed: 100MPH; Max. Wind Loading Area: 7.6 Sq. Ft.
Original List Price: $6,837.60
Complete specs can be found at:
http://www2.rfsworld.com/RFS_Edition4/pdfs/BSA_Penetrator_205-220.pdf
