> Dichroic mirror, 420DCSP @ 45DEG aoi, 38.1MM x 45MM
Dichroic mirror, 420DCSP @ 45DEG aoi, 38.1MM x 45MM

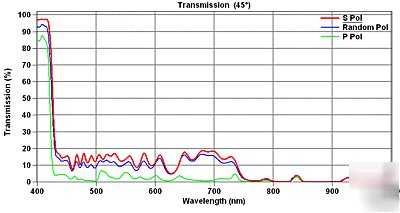

Dichroic Shortpass Mirror 420DCSP Extended Reflector for use at 45 degree angle of incidence. Parts are 31.8mm X 45mm rectangular X 1mm thick. Transmission >90% "P" polarization from 400 to 410nm. Reflection >85% average for random polarization from 450nm to 1000nm and >90% for "S" polarization from 430nm to 500nm.
Smaller parts are available - contact us for pricing.
