Hti 12 vdc - 700 series - powerful 5 pole motor

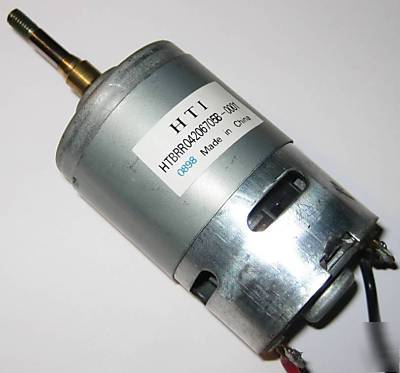

HTI 12 VDC 700 Series Powerful 5 Pole Motor
* Removed from working equipment - motors in excellent shape
Performance at 12 VDC: * No load speed: 4,750 RPM
* No load current: .6 Amperes
* Rated load speed: 3,750 RPM
* Rated load torque: 497 g-cm (6.9 oz-in)
* Rated load current: 3.15 Amperes
* Stall torque: 2,360 g-cm (32.8 oz-in)
* Stall current: 12.6 Amperes
* Shaft is 1 3/16" long and has a 3/16" diameter (30mm long x 5mm diameter)
* Dimensions (not including shaft): 2 5/8" long x 1 11/16" diameter (67mm long x 43mm diameter) - size similar to a 700 series motor
* Shaft has a 5mm metric threaded end (similar thread as 10-32)
* 5 pole armature constructed with silicon steel laminations
* Designed with a multi segment commutator for improved performance
* Motor constructed using powerful permanent magnets
* Ideal for robotics and any other project requiring high power (this motor is very similar to those that are used in electric grass trimmers)
* Motor features solder eyelets for power connection and comes with 8" power leads
* Positive power lead has a thermal cut-off switch and a momentary slide switch (both easily removable)
* Motor is mounted in a removable plastic bracket with two screws
* Features an internal fan for cool operation
