Vaisala humidity temperaturetransmitter HMT363 lot of 3

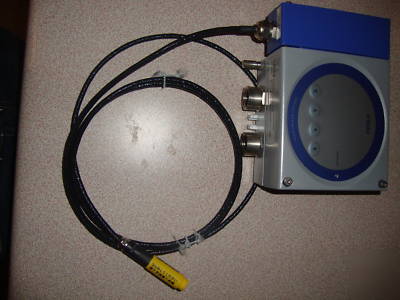

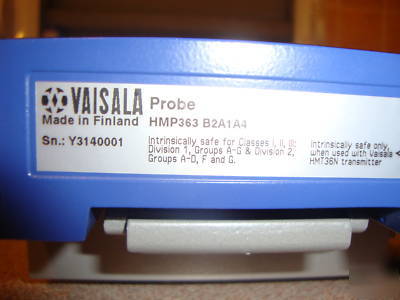

New without Box Old Stock Vaisala Humidity Temperature Transmitter HMT363
HMT360 Series Intrinsically Safe Humidity and Temperature Transmitters
Vaisala's HMT360 humidity and temperature transmitter is designed for use in potentially explosive atmospheres. The electronics are designed so that the fully configurable transmitter is intrinsically safe. The microprocessor-based HMT360 is easy to install, maintain and calibrate due to its modular structure. The interchangeable probes are easy to remove and enable on-site calibration. They make the HMT360 series versatile and ensure its suitability for almost any application.
* Intrinsically safe - the whole transmitter can be installed into the explosive area
* Complies with classifications from PTB (CENELEC, Europe), FM (USA), CSA (Canada), TIIS (Japan), Russia (STV) and PCEC (China)
* The interchangeable probe module contains all calibration coefficients, so a calibrated probe can be switched in the field without the need to input any data manually
* Complies with FM (USA), PTB (CENELEC, Europe), CSA (Canada), TestSafe (Australia) and TIIS (Japan).
* Five interchangeable probe models for a variety of applications:
* HMT361 for wall mounting
* HMT363 for duct mounting and tight spaces
* HMT364 for high pressures up to 100 bar and vacuum conditions
* HMT365 for high temperatures
* HMT367 for high humidities
* HMT368 for pressurized pipelines up to 40 bar
HUMICAP 180 and HUMICAP 180R
Sensor (demanding chemical environment)
-40 ... +60 C (-40 ... +140 F)
-40 ... +120 C (-40 ... +248 F)
-40 ... +180 C (-40 ... +356 F)
Typical accuracy of electronics at +20 C (68 F)
Pt 1000 RTD 1/3 Class B IEC 751
Other optional variables available
Dewpoint temperature, mixing ratio, absolute humidity, wet bulb temperature.
-40 ...+ 60 C (-40 ... +140 F)
-20 ...+ 60 C (-4 ... +140 F)
-40 ...+ 70 C (-40 ... +158 F)
with serial port (servicemode)
two-wire 4 ... 20 mA, one standard, one optional
RS-232C serial output for service use
Duct mounting installation kit (for HMP363/367)
Installation flange (for HMP365)
214101 (for use in the presence of combustible dust)
