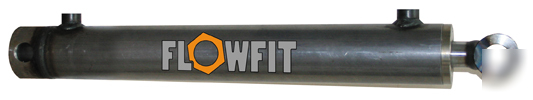

Hydraulic double acting cylinder 50X30X200X400MM
Hydraulic Double Acting Cylinder 50x30x200x400mm
* Closed Centre pin hole to pin hole 400mm
* Open Centre pin hole to pin hole 600mm
Based on maximum working pressure of 200bar (3000 psi) this cylinder will push 3.93 Tonnes (4003Kg)
* Temperature -30 deg. C to 90 deg C
* Oil - Hydraulic mineral oil
Rod - CK45 chrome plated f7 Ra<0.2
* Chrome thickness 25 u - 5u
* Corrosion test 120 hrs NSS ISO9227 class 9 (ISO4540) Hardness 900HV
* Tube - St 52.3 BK DIN 2393 /C tolerance H9/10. Ra<0.8u
* Gland - nitride hardening steel (38MF5) or Cast Iron G25
* Piston - Steel C35R (NSn 28)
* Rod - Compact polyurethane lip seal 1 wiper seal
* Piston - Compact polyurethane seal nitrile
Protection of the circuit by a relief valve and a filter.
* Check the cleanliness (Pollution).
* To bleed air from the cylinder and the hydraulic circuit.
* Do not weld on the tube. Dismount the cylinder to weld on the rod or base.
* Storage of extended cylinder, the rod must be greased.
* For high press cleaning, protect the rod.
* Cylinders must not be stored flat, they must be standing in the upright position.
LOOK AT OUR OTHER LISTINGS FOR DETAILS ON OTHER CYLINDER SIZES AVAILABLE.
We specialise in all types of hydraulic components. We have the latest hydraulic components and equipment, with fully trained experienced hydraulic technicians who work with hydraulic components and applications on a daily basis.
