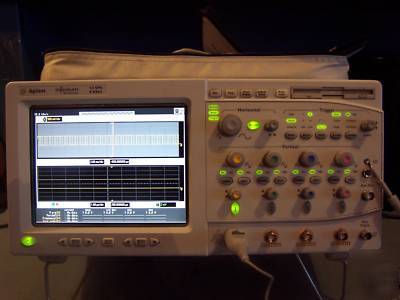

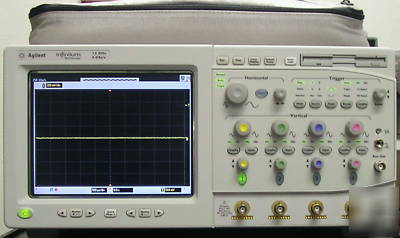

Agilent 54845A infiniium oscilloscope : 4 chan,1.5 ghz


The Infiniium 54845A oscilloscope's 4 channel, 1.5 GHz, 8 GSA/s offers the versatility and performance you need for general purpose design and troubleshooting. 4 channels, 1.5 GHz bandwidth, and a sample rate of 8 GSA/s on all channels simultaneously ensures fast, accurate capture of waveforms.
Bandwidth: dc to 1.5 GHz, 50 ohm input; dc to 500 MHz, 1 megohm input
Sweep speed: 20 s/div to 100 ps/div
Sensitivity: 2 mV/div to 2 V/div, 1 megohm input; 2 mV/div to 1 V/div, 50 ohm input
Sample rate equivalent time: 500 GSA/s
Memory depth: 64k 2-channel mode, 32k 4-channel mode

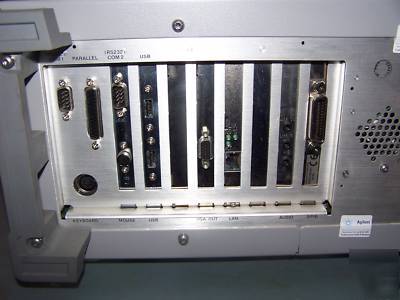

Interfaces: LAN, GPIB, RS-232, USB, PS/2, Centronics, keyboard, video & aux. outputs
1 megohm or 50 ohm input impedance
100 to 240 Vac 10% Autoselect; 47-440 Hz operation
Weight: 27 lb; Size: 216 mm (8.5 in)H x 437 mm (17.2 in)W x 440 mm (17.34 in)D

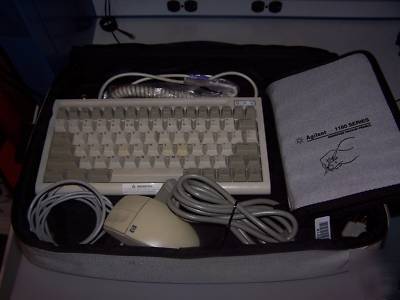

* 1 - Top Soft Accessory Bag
* 1 - 1161A Passive Oscilloscope Probe Kit
