> 2000 mattei 25HP screw air compressor model erc 1018L

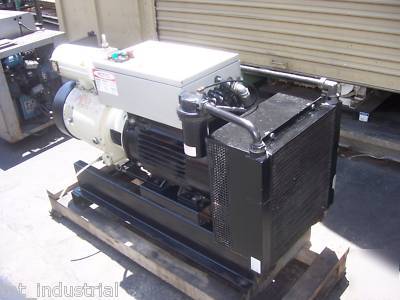

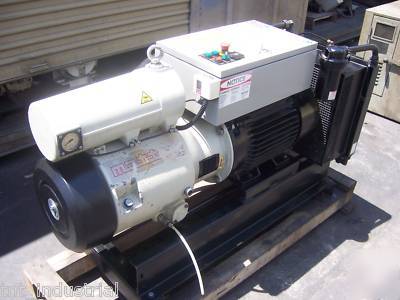

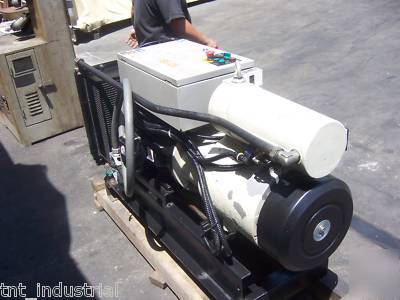

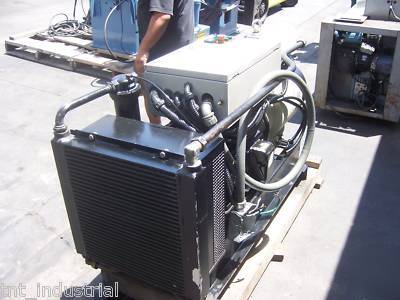

2000 mattei 25HP screw air compressor model erc 1018L
ERC 1018L 105 CFM 125 PSI 200, 230 / 460 81 1" 58 x 22 x 35 900 lBS
Best Choice for Value & Durability
WE BUILD A BETTER COMPRESSOR Enea Mattei believed there was a better and more
energy efficient way to generate compressed air. So, he focused his engineering on the inherent advantages
of rotary vane technology and engineered in:
b) maximum mechanical & electrical efficiency
c) the most compressed air generated while consuming the least amount of electricity.
In effect, Mattei redefined the process of compressing air when he invented his first rotary vane
air compressor over 50 years ago.
Today, Mattei continues to leverage advancements in
technology and materials to offer the best value in
premium quality air compressors found anywhere on
overhaul, unrivaled super quiet
operation, and the most energy
stingy designs in the industry.
It s a fact; Mattei is in a class of its own. Want to
protect productivity, increase profitability, and
Get your last air compressor first. Get a Mattei.
Mattei compressors are designed to give constant top
performance 24 hours a day, every day of the year.
Extremely rugged and reliable, ERC Series is designed for
outstanding durability and value.
Rely on Mattei ERC Series for:
Unaltered performance through time
No wear of the compressor s moving mechanical parts
System friendly demand adaptable controls
Low oil volume and consumption
Direct coupled compressor and motor
Slow 1,800 RPM rotational speed
SIMPLY SUPERIOR ERC Series are our traditional
open-frame air compressors designed for performance and value.
Known for reliability, each features sleek in-line construction,
simple controls, quiet dependable operation and low maintenance.
MATTEI compressors are simply superior by design.
It is not uncommon to get over 100,000 hours of service life out
of our airends without a rebuild. MATTEI vane technology features
zero-wear MeehaniteTM cast iron blades that ride on a thin film of
lubricant thus, preventing wear to the blade or stator wall. The
heart of the unit is the rotor which is supported by two (2) white
metal Babbitt bushings and spins at only 1,800 rpm.
ERC Series is also friendly to your wallet and the environment.
Each vane unit holds very little lubricant (typically less than half
that of a screw type compressor) which saves you a small fortune
on oil changes and disposal costs. The oil filter is cleanable yes,
cleanable. The highly efficient mechanical air/oil separation
chamber delivers high quality air to the air/oil separator filter thus,
it sees very little lubricant and provides up to 10,000 hours
of service, and low 1-3 ppm oil carryover.
Get your money s worth. Get a MATTEI.
Inherently quiet and compact, MATTEI
save you big on energy costs and uses
half the floor space. Stacked Systems are
an ideal alternative to VSD controlled
compressors like our OPTIMA Series if
your shop operates multiple shifts and/
or has a variety of tools or equipment
that runs intermittently causing you to
experience large swings in air demand.
System rated from 10 thru 40 HP, you
can mix or match machines. Matched
systems from two 5 HP units to 20 HP
or, mix combinations such as 5/7.5 HP,
Energy saving Stacked Systems are
your best solution for flexibility and
Ambient air is drawn through a filter into the compression chamber consisting of a stator in which an
eccentrically arranged rotor revolves at 1,800 rpm. An air intake valve automatically adjusts incoming
air volume to match your control scheme. The rotor has longitudinal slots in which the vanes slide.
Zero-wear vanes ride on a thin film of oil and are held against the stator by centrifugal force. The air is
compressed through the contraction in volume of each chamber formed by the vanes, the rotor and the
stator wall. Sealing, cooling and lubrication are ensured by the oil injected into the chamber.
Mattei compressors have an exclusive and efficient oil
separating system which occurs in three stages: in the
initial stage most of the oil is separated in a labyrinth in the
compression chamber; the flow then enters the separator
chamber where a mechanical separation takes place through
speed reduction and flow deviation; the last phase occurs through
the separator element. Only 0.02% of the initial oil arrives to this
final stage; this is the reason for which the average life of Mattei s
separator element is 10,000 operating hours. Most importantly, this
separating system guarantees a maximum oil residue of 3 ppm in
