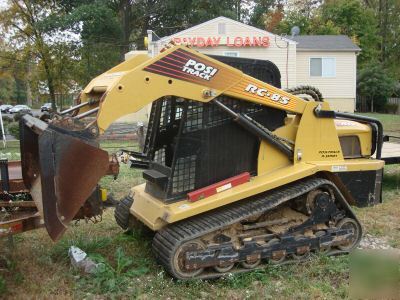

Demo asv rc-85 rubber tracked skidsteer w/ hd bucket
Demo ASV RC-85CAB with HD bucket and rear brush guard. Unit has only 425 hours of operation and is in good working shape. Cab includes heat and A/C.
The RC-85: Unmatched Balance of Power & Agility
ASV's RC-85 Outperforms Conventional Skid Steers
Quick Response, Fast Cycle Times
The RC-85 features the one of the most advanced hydraulic systems available. Tracks are directly driven by single-speed drive motors, with travel speeds up to 6 mph. The hydraulic system provides up to 38 gpm to the standard high flow auxiliary circuit on demand or 20 gpm to the low flow circuit. The RC-85 s load-sensing hydraulic system is highly efficient, producing up to 10% more hydraulic horsepower compared to less efficient systems. As a result, you get more done and you get it done faster.
Advanced Rubber Track Undercarriage
The RC-85 was designed from the ground up to run on a suspended rubber track undercarriage with no compromises to machine width, ground clearance and machine balance. You get maximum traction and aThe RC-85's suspended rubber track undercarriage exerts only 3.3 psi of ground pressure. smoother ride.
Forty-two wheeled contact points spread the machine weight out over 18-inch wide rubber tracks, exerting only 3.3 psi ground pressure. With that much track on the ground, you crawl over the most fragile ground with minimal surface disturbance. You can also work productively in soft mud and snow.
No steel inside the tracks means the RC-85 is smooth, quiet and very efficient. The internal positive drive system uses hydrostatically-driven sprockets with free-turning rollers to drive the track. This unique system minimizes friction between drive components and the track. As a result, travel speeds are much higher than on systems with steel sprockets and rubber-bonded steel tracks. Tracks and drive components last longer, too. RC-85 tracks come with an exclusive 1,000 hour warranty (see warranty for details).
Suspension of the undercarriage helps maximize contact with the ground for better traction and stability. It also gives a much smoother ride for the operator, improves load-retention and is easier on the machine, too.
The RC-85's operator station is comfortable and efficient.Comfortable Operation
The RC-85 s operator station has more features and built-in comfort than ever before. New joystick controls have integrated hydraulic and electric attachment controls for precise, low-effort operation. A full spectrum of gauges and switches are conveniently located for easy view and reach. Safety-related features include full ROPS/ FOPS canopy, lap bar, comfortable seat belt and brake. An enclosed cab with sound insulation is also available.
An air conditioner/heater option can be integrated into the operator station with an automotive-like finish, eliminating exterior compressors and space-robbing blowers.
A tilt-up ROPS/FOPS canopy makes access to the hydraulic system quick and easy. Service to the engine and cooling package is through a tilt-up rear hood.
