Leviton equipment surge protector suppressor 24VDC

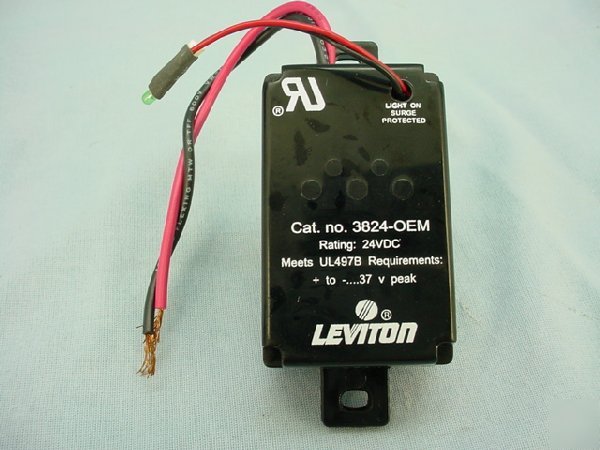

Leviton Equipment Surge Protector Suppressor 24VDC
Leviton 3824-OEM equipment cabinet surge suppressor with 6" wire leads. Allows you to build surge suppression into your next project. Intended for use with sensitive electronic equipment and appliances with solid state circuitry that would benefit from protection against damage caused by transient surges. The LED indicator is on a wire lead so that you can locate it to be visible from outside the cabinet or on a panel, etc; LED is ON when surge protection is operational. Features include:
* Mounts on standard equipment cabinets; compact black box styling coordinates with other mounted equipment
* MOV-based suppression circuitry provides optimum clamping
* Provides normal mode protection for line-to-neutral & common mode; line-to-ground & neutral-to-ground
* Max. DC Operating Voltage: 26.4V DC
* (+) to (-) Clamping: 33V Peak
* Maximum Surge Current: 10A
* Strike breakdown voltage 33.1-38.2V(100V/s); 18.2-19.2V(100V/sec)
