Used internal grinder, smtw hydraulic internal grinder

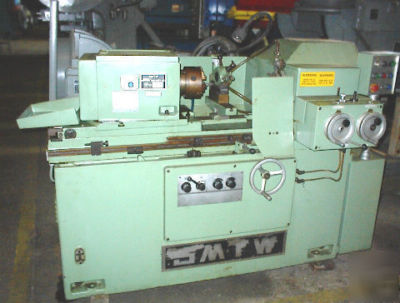

Model M2110C SMTW Hydraulic Internal Grinder, 1994 [#768]
Diameter of Bore Ground 1/4" - 4",
Maximum Depth .355" for Min. Bore, 5.9" for Max. Bore,
Swing 10.24", 15.75" w/o Hood,
Maximum Loading Capacity (Including Chuck) 110 Lbs.,
Maximum Stroke of Work Table 21.65",
Maximum Workhead Swivel 20 Degrees,
Work Table Moving Speed 4 - 40 ipm (dressing),
Maximum Tranverse Movement 3.15",
Wheel Speed (3) 10K - 18K - 24K,
6" Three (reverseable) Jaw Chuck,
Hydraulic Wheel Dresser with Indicator Knob,
Wheelhead Motor 3 HP, 3/220/60,
Dimensions, Approx. 93" L-R x 50" F-B x 52" H,
