Panasonic POC484L5 cctv camera wv-CP484/POH1000/PLZ5/10
PANASONIC POC484L5 CCTV CAMERA WV-CP484/POH1000/PLZ5/10
* PANASONIC POC484L5 CCTV CAMERA WV-CP484/POH1000/PLZ5/10

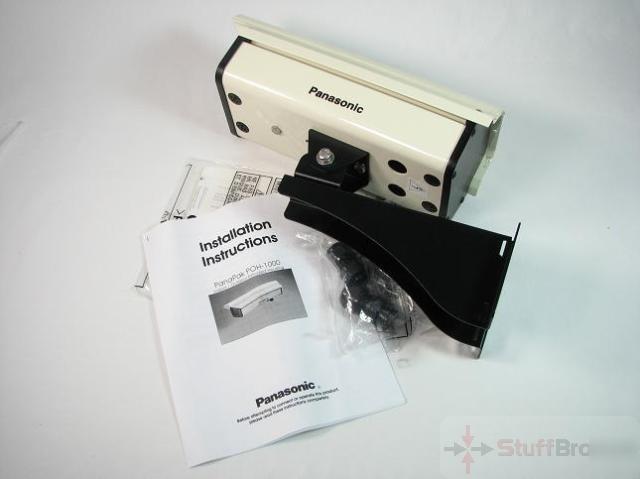

* POH1000 BULLET STYLE WALL MOUNT ALUMINUM HOUSING
* PLZ5/10 VARI-FOCAL DAY/NIGHT TELE LENS
100% - New (Item has never been used and is in excellent cosmetic condition)
100% - New (Item has never been used - functions 100%)
CONDITION NOTE: This kit is BRAND NEW, NEVER USED, still in the original packaging
This listing is for one POC484L5 kit. The POC484L5 kit includes a WV-CP484 Super Dynamic III Plus 1/3" CCD Security Camera, a PanaPak POH1000 Indoor/Outdoor Extruded Aluminum Bullet Style Wall Mount Camera Housing, and a PLZ5/10 5 50mm Vari-Focal Day/Night Telephoto Lens.
With the Ready-to-Go Camera Packages, Panasonic dramatically simplifies and streamlines your installations. Each package comes as a complete, ready-to-install unit: a camera body, lens, and appropriate housing - fully assembled. About all you need to do is open the box, mount the camera, and connect your video and power. It's that simple, and that fast.
Panasonic WV-CP484 Camera Description:
The Panasonic WV-CP484 is a Super Dynamic III Plus camera equipped with Auto Back Focus (ABF). When these cameras switch from color to B/W mode, the cameras automatically make micron-order adjustments in CCD position to achieve precise back focus. The new Auto Back Focus (ABF) technology ensures delivery of clear, sharp, perfectly focused image 24-hours a day, automatically.
* 1/3" Double Speed CCD Color Image Sensor
* Switches from Selected Color Mode to B/W Mode
* 16-Alphanumberic Character Display
* Gen-lock Capability for Large System Applications
* VD2 Sync Capability with Panasonic System Products
* Signal to Noise Ratio of 50db
* 24VAC, 60Hz / 12V DC, 410mA
* Type: Color or Black and White
* Resolution: 540 line horizontal (color mode) / 570 lines horizontal (B/W mode)
* Minimum Illumination: 0.5 lux (0.05 fc)at F1.2 (Color Mode); 0.06 lux (0.006fc) at F1.2 (B/W Mode)
* Advanced Technology: Super Dynamic III
* Signal to Noise Ratio: 50dB
* Power: 24V AC 60Hz / 12V DC
* Dimensions: 2.5625'' x 2.625'' x 3.9375''
Panasonic POH1000 Housing Description:
The POH1000 in an indoor/outdoor, environmental housing that can accommodate many Panasonic camera/lens combinations. The body is an attractive beige finish with black end caps. A heater/blower, and sunshield are available.
* Side hinges for ease of access when focusing and adjusting the camera
* Easy camera installation
* Accepts many lens and camera combinations
* Optional 24 VAC heater/blower, sunshield
* Lightweight aluminum chassis
* Fits all current Panasonic 1/3 inch cameras with all Panasonic fixed focal length 1/2 inch and 1/3 inch ALC lenses
* Products Housed: Panasonic 1/3" CCD camera with Panasonic fixed focal or varifocal (manual zoom) lens
* Ambient Operating Temperature: -20 F to +120 F
* Power Source: 24V AC, 60Hz
Housing Body: Extruded aluminum, powdercoat beige finish
* End Caps: Black polycarbonate
* Dimensions: (H x W x D) 4.375'' x 5.625'' x 11.00''
Panasonic PLZ5/10 5 50mm Vari-Focal Day/Night Telephoto Lens Description:
* Focal Length: 5.0 - 50.0mm Vari-Focal Lens
