Oz~jet/asian large wood shaper ss-511 ss-512 manual

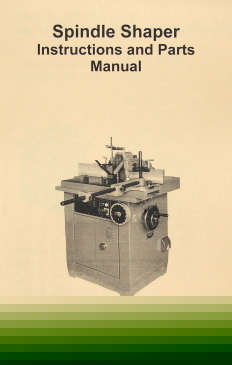

This is a reproduction, not a photocopy, of an original JET Wood Spindle Shaper Instructions and Parts Manual. This manual contains general safety instructions, operation instructions, assembly instructions, adjustments, maintenance, lubrication, and a complete set of exploded view diagrams of the parts with description. Please read index below.
Diameter 3/4" (19.5), 1" (25.4), 1-1/4, 30, 35, 40mm.
Vertical Stroke 3-1/8" (80mm).
Five Speeds: 3000, 4000, 6000, 8000, 10000 rpm.
Table Inserts SS-511:227mm, 0160mm. SS-512: 0262mm, 0160mm.
Inserts Opening Motor 0160mm, 080mm.
Collets (Optional) 1/2", 3/8", 5/8", 12mm, 16mm.
Max. Diameter Of Cutters Can Be Used For SS-511 210mm (8-3/8").
Max. Diameter Of Cutters Can Be Used For SS-512 260mm (10-1/4").
Table Size For SS-511 700x900mm (27-1/2"x35-3/8").
Table Size For SS-512 800x1000mm (31 -1/2"x39-3/8").
Fence Size For SS-511 900x120mm.
Fence Size For Ss-512 1000x146mm.
SS-512T, TS, M, MS 1160x940x1020mm.
Specifications...................................2
Features Of Your Shaper..........................3
Important Safety Instructions....................4
General Safety Rules.............................4
Additional Safety Rules For The Wood Shaper......5
Unpacking And Cleanup............................7
Installation Requirements........................8
Installation And Levelling.......................8
Grounding Information And Power Connections......8
Electrical Controls..............................9
Adjustment And Operating Your Shaper............10
Speed Change And Belt Adjustment................10
Spindle Installation And Replacement............11
Spindle Tilting, Raising And Lowering
Adjustment......................................12
Shaper Cutterhead Installation..................13
Table Inserts...................................14
Assembling And Installing Shaper Fence
And Dust Hood...................................14
Operating Controls For The Fence................15
Work Hold-Down Guides Adjustment................15
Sliding Table Adjustment........................16
Operation.......................................17
Shaping When Using The Fence As A Guide.........16
Position Of Collars.............................17
Lubrication Guide Of Your Shaper................20
Periodical Maintenance..........................20
Trouble Shooting..........................21,22,23
Parts Breakdowns And Parts List..............24-29
Wiring Diagram..................................30
