New lcn 4111 smoothee heavy duty thru bolt door closer

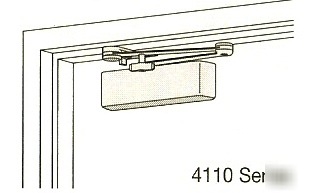

LCN Heavy Duty Thru-Bolt Parallel Mounted Door Closer, LCN 4111
LCN 4111 Parallel Mounted Door Closer, LCN "Super Smoothee"
The LCN 4111 Smoothee is a heavy duty, parallel arm closer designed for institutional and other high traffic applications. They are normally thru-bolt mounted with the included Self-Reaming & Tapping Screws.
This handed closer is specifically designed for parallel arm mounting and has passed 10,000,000 cycles in independant testing. UL and ULC listed for self-closing doors without hold-open. Fully adjustable spring rate, closing speed, latch speed and back check.
Tested and certified under ANSI Standard A156.4, grade one.
Specifications and Features: of LCN 4111 Door Closer
* Maximum Door Weight: 250 lbs
* Maximum Door Size: 54" interior / 42" exterior
* Spring Size: Adjustable 1-5
PLEASE NOTE THAT THIS IS FOR A LEFT HANDED DOOR CLOSER.

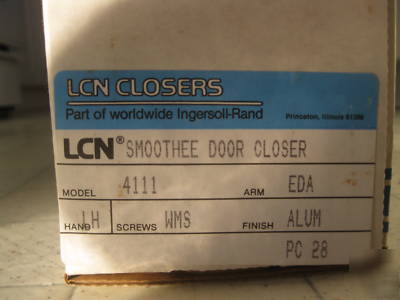

The specific box information for this closer:
