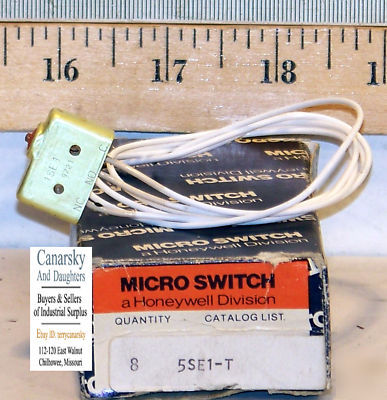

New 1 microswitch 5SE1-t electromechanical switch
THIS LOT CONSISTS OF: 1 NEW MICROSWITCH 5SE1-T ELECTROMECHANICAL SEALED SWITCH. * Switch Type: MICRO SWITCH Subminiature 12,7 mm H x 6,35 mm W x 20,3 mm L [0.5 in H x 0 * Sealed: Yes, Environment * Ampere Rating: 5 A * Circuitry: Single Pole Double Throw (SPDT) * Actuator: Pin Plunger * Termination: Solder * Operating Temperature Range: -26 C to 80 C [-15 F to 185 F] * Voltage: 250 Vac * Contact Type: Silver * Operating Force (O.F.): 1,39 N - 4,73 N [5.0 oz - 17.0 oz] * Release Force (R.F.): 1,11 N [4.0 oz] min. * Pretravel (P.T.): 1,27 mm [0.050 in] max. * Overtravel (O.T.): 0,08 mm [0.003 in] min. * Differential Travel (D.T.): 0,1 mm [0.004 in] max. * Operating Position (O.P.): 10,8 mm [0.425 in] * Housing Material: Aluminum * Mounting Screw Size: 22,1 mm [0.087 in] * Mounting Centers: 9,53 mm 0,05 mm [0.375 in 0.002 in] * Maximum Tightening Torque: 0,28 N m [2.5 in lb] * Weight: 7,37 g [0.26 oz] max. * Package Height: 19,05 mm [0.75 in] * Package Width: 8,64 mm [0.34 in] * Package Length: 22.35 mm [0.88 in] * Recommended For: Oil resistant applications * UNSPSC Code: 30211905 * UNSPSC Commodity: 30211905 Snap switches * Series Name: SE. CONDITION: NEW SURPLUS. NO REASONABLE OFFER REFUSED.
