Vertex hv-8 8" h/v rotary table w accessories package
VERTEX HV-8 8" H/V ROTARY TABLE WACCESSORIES PACKAGE
* 8" HORIZONTAL & VERTICAL TABLE

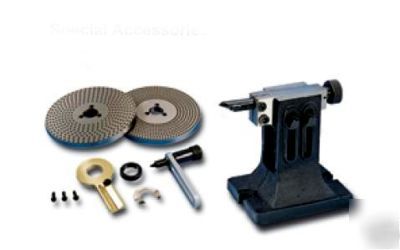

* TAILSTOCK & DIVIDIING PLATES
ARTB-8 VERTEX HV-8 8" H/V Rotary Table.
This table is made of high density Meehanite, and is Electronically inspected (using HEIDENAHIN INSPECTION) for Excellent quality, durability and precision.
Has a ground and hardened worm gear. Ratio is 90 to 1.
The work table is graduated a full 360 so that one turn of the handle moves the table through 4 degrees.
Micro collar is graduated. Precision Vernier Scale.
MT-3 Center Sleeve Cut gears, holes, bolt hole patterns, intersecting slots, and curved slots precisely.
Includes worm-drive handwheel with Vernier scale for 4 degree table movement per turn, four 1/2" t-slots and two table clamp handles for stability.
Main body mounts horizontally and vertically.
Table is 4-1/4" high with MT3 bore.
